Description
Tianhui- one of the leading UV LED chip manufacturers and suppliers provides ODM/OEM UV led chip service for over 22+ years.
Hot375 Nm Led 3.5-3.7V Tianhui Brand
UV Wavelength:
365-420nm
Rated voltage:
3.5-3.7V
Input current:
1A
Brand:
Seoul Viosys, SVC
Model:
CUN（X）GF1A
Product details of the 375 nm led
Quick Detail
Tianhui 375 nm led are manufactured from best quality materials, which are procured from reliable manufacturers. To guarantee products quality, we use advanced testing equipment. The product is bound to have a bright application prospect in the industry.
Product Introduction
In order to know 375 nm led better, Tianhui will show you the specific details in the following section.

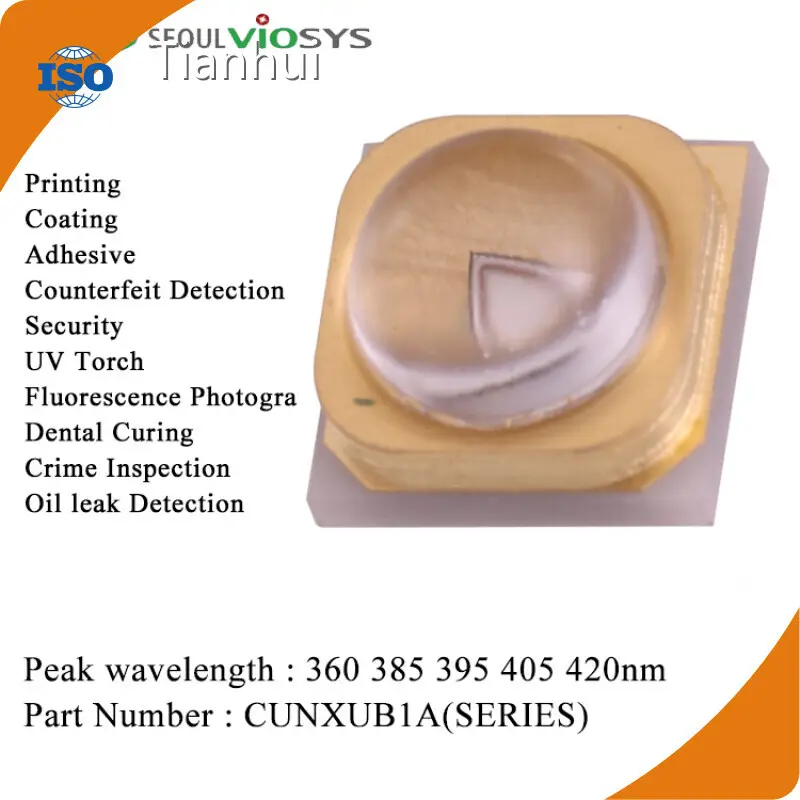

High power UV LED series designed for high current operation, narrow radiation angles and high power output applications.
It combines advanced SMD design and low thermal resistance materials.
The CU3737 is an ideal UV light source for curing, printing and inspection applications.
Application
| Printing | Dental Curing | UV Curing |
| Crime Inspection | Oil Leak Detection | Fluorescence Photography |
Parameters
Item | Specifications |
Model | CUN(x)UB1A series |
Forward Voltage | 360~370nm:3.7V 380~410nm:3.5V 415~425nm:3.6V |
UVA radiation flux | 360~370nm:0.9W 380~410nm:1.1W 415~425nm:1.0W |
UVA Wavelength | 360~370nm 380~410nm 415~425nm |
Input current | 700mA |
Storage temperature | -40℃~100℃ |
Remarks
• Peak wavelength（ λ p) The measurement tolerance is ± 3nm.
• Radiation flux（ Φ e) Measurement tolerance ± 10%.
• The measurement tolerance of forward voltage (VF) is ± 3%.
Warning Instructions For Use
1. To avoid energy decay, keep the front glass clean.
2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.
3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.
4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not
recommended that the glue of the outlet hole of the module directly contact the drinking water.
5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged
6. Human safety
Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.
If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be
used to protect the body. Attach the following warning labels to products / systems
