Description
Tianhui- one of the leading UV LED chip manufacturers and suppliers provides ODM/OEM UV led chip service for over 22+ years.
High End 255nm Led Manufacturing for Sterilization
UV Wavelength:
305~315nm
Minimum order quantity:
10
Consumption Power (W):
0.5~0.7W
Input Voltage:
5~7V
Lead_Time:
1 - 10(pieces):15(days),>10(pieces):Negotiable(days)
Product details of the 255nm led
Product Introduction
With the assistance of the professionals, the production of Tianhui 255nm led is highly efficient and accurate. The professional technical team conducts a comprehensive quality control for this product in the production. Except for adopting superior material, 255nm led is produced on sophisticated equipment.
The Seoul Viosys 305nm 310nm 315nm LED provides effective air and water sterilization. With advanced deep ultraviolet technology, it ensures thorough and efficient purification, safeguarding against harmful bacteria and viruses.

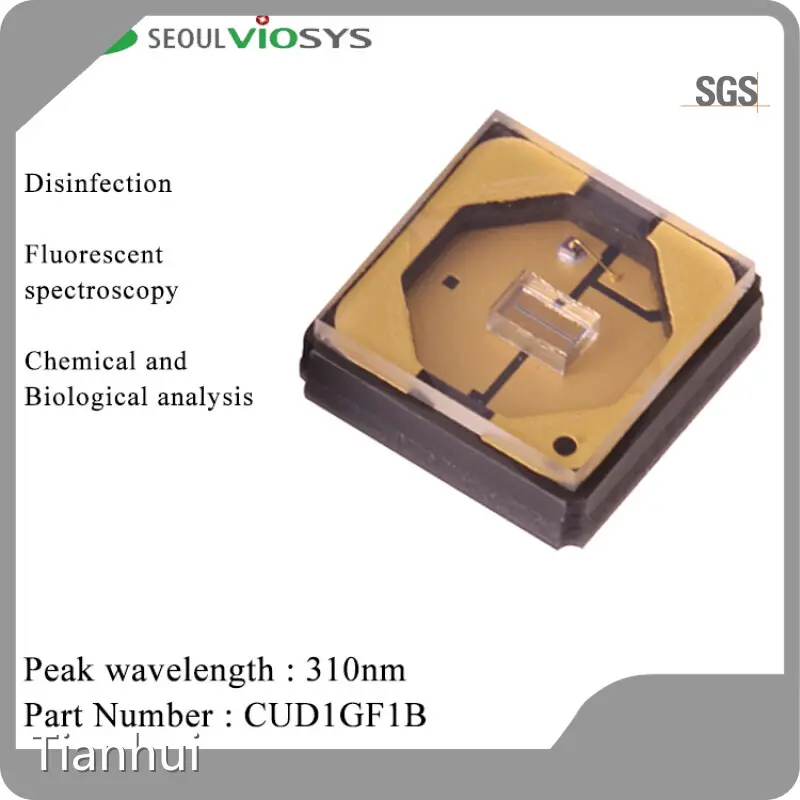

Seoul Viosys CUD1GF1B is a deep ultraviolet light emitting diode with peak emission wavelengths from 305nm to 315nm.
The UVC LED chip is sealed in ceramic packages including an optical transparent window.
It incorporates state of the art SMD design and low thermal resistance. This advanced technology ensures effective sterilization for air and water.
CUD1GF1B is designed for air and water sterilization and tools including chemical and biological analysis in that spectral range. Experience the power of clean and safe environments with this reliable and high-performance product.
Application
| Air And Water Sterilization | Fluorescent Spectroscopy | Chemical and Biological Analysis |
Parameters
|
Item |
Specifications |
|
Model |
CUD1GF1B |
|
Rated voltage |
5~7V |
|
UVC radiation flux |
6mW |
|
UVC Wavelength |
305nm led~315nm led |
|
Input current |
100mA |
|
Input power |
0.5~0.7W |
|
Storage temperature |
-40℃-100℃ |
Remarks
• Peak wavelength（ λ p) The measurement tolerance is ± 3nm.
• Radiation flux（ Φ e) Measurement tolerance ± 10%.
• The measurement tolerance of forward voltage (VF) is ± 3%.
Packaging method (reference standard data)
Warning Instructions For Use
1. To avoid energy decay, keep the front glass clean.
2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.
3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.
4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not
recommended that the glue of the outlet hole of the module directly contact the drinking water.
5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged
6. Human safety
Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.
If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be
used to protect the body. Attach the following warning labels to products / systems
Company Feature
• We have established an operation team composed of elite talents in the industry. Based on our economic strength, we will expand the publicity channels, promote to expand the business scope in the domestic and overseas markets, and achieve the 'going out' strategy.
• Our company was established in After years of development, our business has grown from a single development to an integrated development pattern with prominent main business and full industrial chain.
• Tianhui's location enjoys a comprehensive traffic network, which is good for the distribution of products.
If you are in need for products of reliable quality and affordable price, please contact us at any time!
