Good Selling Uv 385 Nm Tianhui Manufacture 1

Good Selling Uv 385 Nm Tianhui Manufacture 2

Good Selling Uv 385 Nm Tianhui Manufacture 3

Good Selling Uv 385 Nm Tianhui Manufacture

UV Wavelength:

270-280nm

Rated voltage:

DC 12V

Consumption Power (W):

0.6

Input Voltage:

DC 12V

Product name:

TH-UVC-PA04

Inquiry

Product details of the uv 385 nm

Product Overview

In order to be more competitive, our uv 385 nm are all designed to be unique. The product undergoes quality testing from our QC team to ensure faultlessness. With these favorable features, it will enjoy wide development prospects.

Product Description

Tianhui produces uv 385 nm according to national standards, and the products are of good quality. The specific details are as follows.

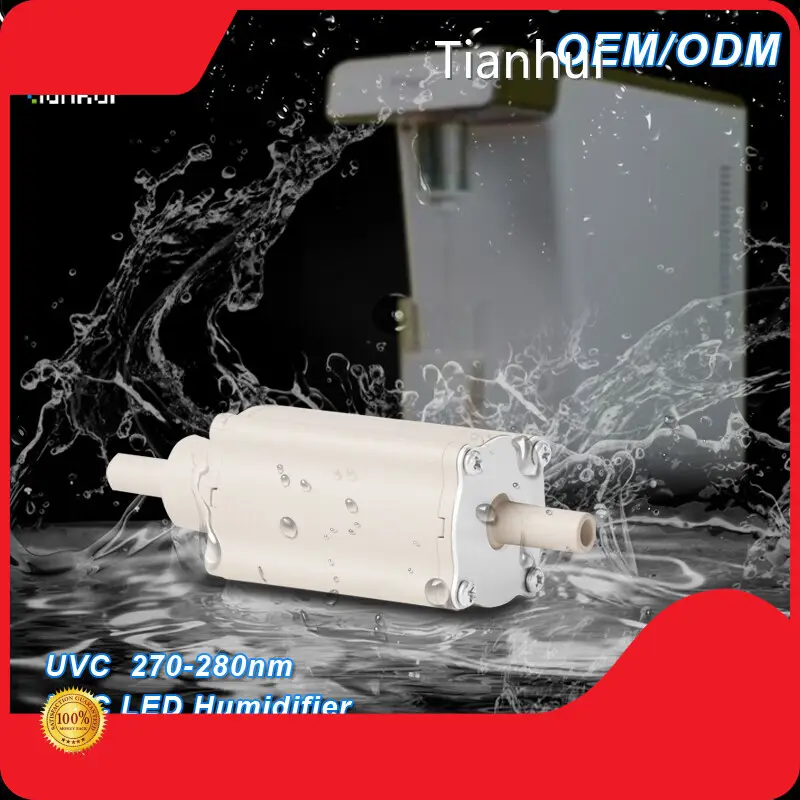

UVC LED Disinfection Module For Water Dispenser

Description

TH-UVC-PA04 is a overcuttent UVC LED water disinfection module. The circuit's driver board is built into the module's interior to save space. The UVC LED module relies on water flow to dissipate heat and comes with a water flow switch to prevent burnout due to water cutoff. The module is suitable for installation in the middle section of the water circuit.

The UVC LEDs used have a wavelength range of 270-280nm UV LED and have excellent and efficient sterilization effects. The internal UVC high reflectivity cavity can effectively improve the utilization of UV light, thus significantly enhancing the sterilization effect. With extensive industry experience, our 270nm 275nm 280nm UVC LED module for flowing water UV disinfection water treatment guarantees effective and reliable sterilization.

UVC sterilization is an effective treatment for the diverse microorganisms that exist in the environment. Use UV light for sterilizing water, use UV light for sterilizing water, enjoy safe, pure, and germ-free water every time. Immediate investment and health!

Application

Drinking machine	Ice machine	Air humidifier
Air purifier	Pet water dispenser	Dishwasher

Parameters

Item	Specifications	Remark
Model	TH-UVC-DEM04	-
Rated voltage	DC 12V	Customizable
UVC radiation flux	≥5mW	-
UVC Wavelength	270-280nm uv led	-
Input current	50±10mA	According to the lamp bead selection
Input power	0.6W	-
Waterproof grade	IP67	-
Wire rod	200±10mm	Customizable
Terminals	XHB2.54，2Pin，yellow	Customizable
Lamp bead life	>10,000 hours	-
Dielectric Strength	DC500 V,1min@10mA, Leakage current
Working temperature	-25℃-40℃	-
Storage temperature	-40℃-85℃	-

Remarks

Peak wavelength（ λ p) The measurement tolerance is ±3nm.

Radiant flux（ Φ e) Measurement tolerance±10%.

The measurement tolerance of forward voltage (Vf) is±3%.

Overall dimension

Packaging method (reference standard data)

Warning Instructions For Use

1. To avoid energy decay, keep the front glass clean.

2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.

3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.

4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not

recommended that the glue of the outlet hole of the module directly contact the drinking water.

5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged

6. Human safety

Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.

If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be

used to protect the body. Attach the following warning labels to products / systems
