For Treatment Uv 390 Nm CUN9GB1A by Tianhui 1

For Treatment Uv 390 Nm CUN9GB1A by Tianhui 2

For Treatment Uv 390 Nm CUN9GB1A by Tianhui 3

For Treatment Uv 390 Nm CUN9GB1A by Tianhui 4

For Treatment Uv 390 Nm CUN9GB1A by Tianhui 5

For Treatment Uv 390 Nm CUN9GB1A by Tianhui 6

For Treatment Uv 390 Nm CUN9GB1A by Tianhui 7

For Treatment Uv 390 Nm CUN9GB1A by Tianhui

UV radiation flux:

1.7W

Wavelength:

390~400nm

Input power:

3.3~3.6W

Brand:

LED

Model:

CUN9GB1A

Inquiry

more products

UV LED Water Sterilization

UV LED Air Sterilization

UV LED Medical Use

UV LED Detection

UV LED Grow Light

UV LED Space Disinfection

UV LED Daily Use

Send your inquiry

For Treatment Uv 390 Nm CUN9GB1A by Tianhui 8

Description

For Treatment Uv 390 Nm CUN9GB1A by Tianhui 9

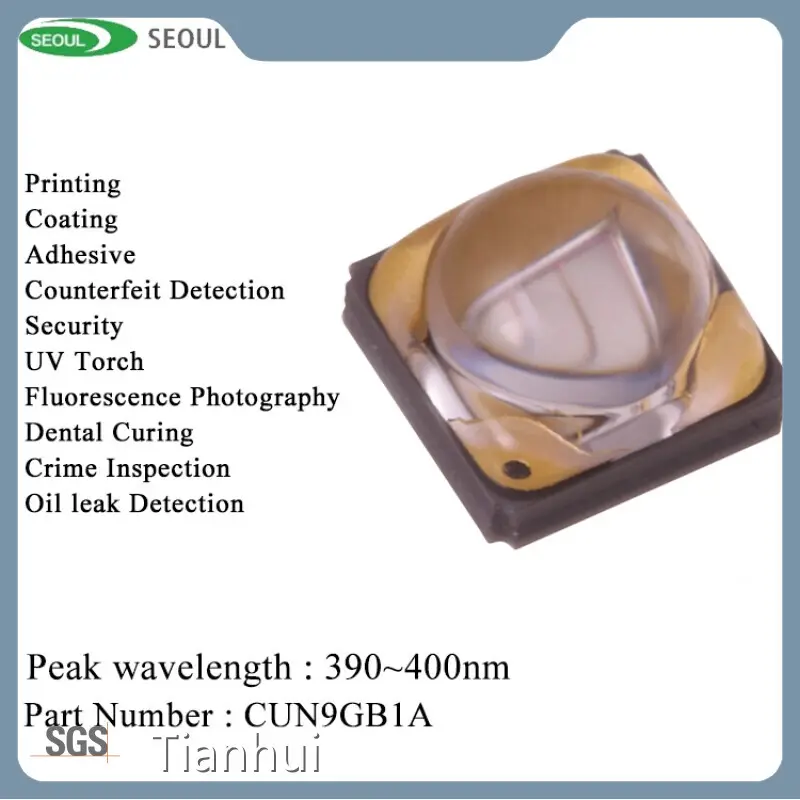

Seoul Viosys high power UV Led chips for curing system series are designed for high current operation and high power output applications,such as 395nm UV LED , 405nm UV LED. It incorporates state of the art SMD design and low thermal resistant material. CA3535 is ideal UV light source for curing, printing, and detecting applications.

Application

For Treatment Uv 390 Nm CUN9GB1A by Tianhui 10

Printing	*Dental Curing*	UV Curing
Crime Inspection	Oil Leak Detection	Fluorescence Photography

Parameters

Item	Specifications
Model	CUN9GB1A
Rated voltage	3.3~3.6W
UVA radiation flux	1.7W
UVA Wavelength	390~400nm
Input current	1A
Input power	3.3~3.6W
Working temperature	-10℃~85℃
Storage temperature	-40℃-100℃

Remarks

• Peak wavelength（ λ p) The measurement tolerance is ± 3nm.

• Radiation flux（ Φ e) Measurement tolerance ± 10%.

• The measurement tolerance of forward voltage (VF) is ± 3%.

For Treatment Uv 390 Nm CUN9GB1A by Tianhui 11

Zhuhai Tianhui Electronic Co., Ltd. was founded in 2002 . This is a production oriented and high technology company integrated research and development, production, sales and solution providing of UV LEDs, which is specialized in doing UV LED module and providing UV LED solutions of finished products for various UV LED applications.

Tianhui has been engaging in UV LED package with full production series and stable quality and reliability as well as competitive prices. The products include UVA, UVB, UVC from short wavelength to long wavelength and complete UV LED specifications from small power to high power.

TH-UVxDB600W7H8P-5075

新TH-UVxCOB300W13H8P-5145

TH-UVxCOB180W8H8P-4040

TH-UVxCOB250W14H6P-3236

Warning Instructions For Use

1. To avoid energy decay, keep the front glass clean.

2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.

3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.

4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not

recommended that the glue of the outlet hole of the module directly contact the drinking water.

5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged

6. Human safety

Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.

If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be

used to protect the body. Attach the following warning labels to products / systems
