For Sterilization Uv 390 Nm TH-UVC-PA04 by Tianhui 1

For Sterilization Uv 390 Nm TH-UVC-PA04 by Tianhui 2

For Sterilization Uv 390 Nm TH-UVC-PA04 by Tianhui 3

For Sterilization Uv 390 Nm TH-UVC-PA04 by Tianhui

UV Wavelength:

270-280nm

UV radiation flux:

40~150mW

Rated voltage:

DC 12V

Consumption Power (W):

0.6

Product name:

TH-UVC-PA04

Inquiry

more products

UV LED Water Sterilization

UV LED Air Sterilization

UV LED Medical Use

UV LED Detection

UV LED Grow Light

UV LED Space Disinfection

UV LED Daily Use

Send your inquiry

Product details of the uv 390 nm

Quick Detail

Tianhui uv 390 nm uses high-quality raw materials and adopts advanced production technology. This product guarantees stable performance and long service life. Tianhui has developed many customers which are satisfied with our uv 390 nm with reliable quality assurance.

Product Information

With a focus on product's quality, our company strives for excellent quality in the process of producing uv 390 nm.

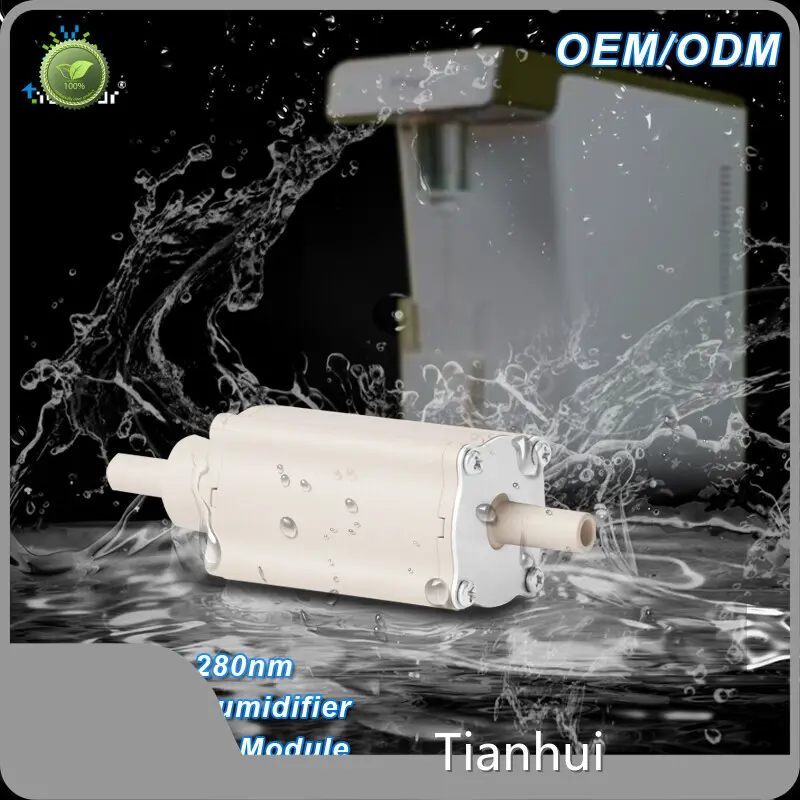

UVC LED Disinfection Module For Water Dispenser

Description

TH-UVC-PA04 is a overcuttent UVC LED water disinfection module. The circuit's driver board is built into the module's interior to save space. The UVC LED module relies on water flow to dissipate heat and comes with a water flow switch to prevent burnout due to water cutoff. The module is suitable for installation in the middle section of the water circuit.

The UVC LEDs used have a wavelength range of 270-280nm UV LED and have excellent and efficient sterilization effects. The internal UVC high reflectivity cavity can effectively improve the utilization of UV light, thus significantly enhancing the sterilization effect. With extensive industry experience, our 270nm 275nm 280nm UVC LED module for flowing water UV disinfection water treatment guarantees effective and reliable sterilization.

UVC sterilization is an effective treatment for the diverse microorganisms that exist in the environment. Use UV light for sterilizing water, use UV light for sterilizing water, enjoy safe, pure, and germ-free water every time. Immediate investment and health!

Application

Drinking machine	Ice machine	Air humidifier
Air purifier	Pet water dispenser	Dishwasher

Parameters

Item	Specifications	Remark
Model	TH-UVC-DEM04	-
Rated voltage	DC 12V	Customizable
UVC radiation flux	≥5mW	-
UVC Wavelength	270-280nm uv led	-
Input current	50±10mA	According to the lamp bead selection
Input power	0.6W	-
Waterproof grade	IP67	-
Wire rod	200±10mm	Customizable
Terminals	XHB2.54，2Pin，yellow	Customizable
Lamp bead life	>10,000 hours	-
Dielectric Strength	DC500 V,1min@10mA, Leakage current
Working temperature	-25℃-40℃	-
Storage temperature	-40℃-85℃	-

Remarks

Peak wavelength（ λ p) The measurement tolerance is ±3nm.

Radiant flux（ Φ e) Measurement tolerance±10%.

The measurement tolerance of forward voltage (Vf) is±3%.

Overall dimension

Packaging method (reference standard data)

Warning Instructions For Use

1. To avoid energy decay, keep the front glass clean.

2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.

3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.

4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not

recommended that the glue of the outlet hole of the module directly contact the drinking water.

5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged

6. Human safety

Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.

If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be

used to protect the body. Attach the following warning labels to products / systems
