Tianhui- one of the leading UV LED chip manufacturers and suppliers provides ODM/OEM UV led chip service for over 22+ years.

 Email:my@thuvled.com        TELL: +86 13018495990

Fine Quality 360 Nm Led Factory Price Medical 1
Fine Quality 360 Nm Led Factory Price Medical 2
Fine Quality 360 Nm Led Factory Price Medical 3
Fine Quality 360 Nm Led Factory Price Medical 4
Fine Quality 360 Nm Led Factory Price Medical 1
Fine Quality 360 Nm Led Factory Price Medical 2
Fine Quality 360 Nm Led Factory Price Medical 3
Fine Quality 360 Nm Led Factory Price Medical 4

Fine Quality 360 Nm Led Factory Price Medical

UV Wavelength:
270~280nm
UV radiation flux:
600~800mW
Consumption Power (W):
16.5~21W
Color:
UV
Model:
THUV275T15WS400-6868
Inquiry

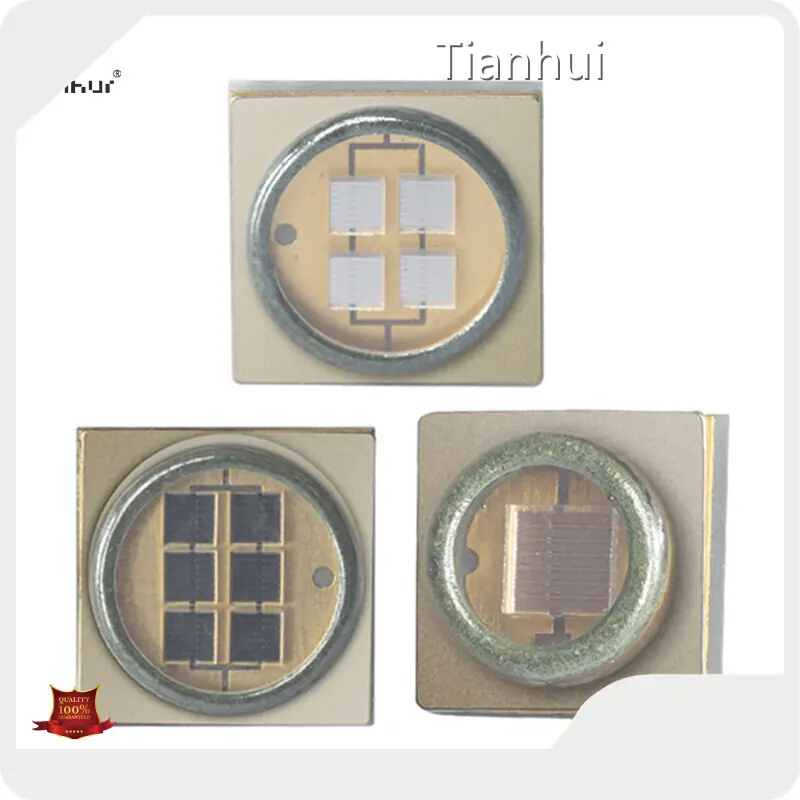

270nm 280nm UVC LED Diode SMD 3535-6868



The sterilization characteristics of UVC LED Diode

 In the field of sterilization and disinfection, UVC LED Diode utilizes high-energy ultraviolet radiation to irradiate microorganisms and destroy the nucleic acid structure, thereby achieving the goal of microbial inactivation, and almost all microorganisms including bacteria, viruses, fungi, and algae can be inactivated.UVC LED Diode has the advantages of high sterilization efficiency, long service life, no chemical pollutants, simple operation, etc., and can be widely used in air, water and object surface disinfection and sterilization. With the global spread of novel coronavirus (COVID-19), 270nm UV Led, 280nm UV Led and UVC LED disinfection is considered as an effective method to eliminate novel coronavirus, which has been used in public places, transportation, personal protection and other fields, providing scientific and technological support to curb the spread of COVID-19.

UV detector light
uv bioanalysis

The role of 270nm, 280nm led

The sterilization band is concentrated between 265nm and 280nm, and the lamp bead has high luminous efficiency. It only takes 3 minutes to complete the strong disinfection of items; Due to the environmentally friendly and non-toxic characteristics of UVC LED, this product can disinfect items with high safety requirements such as food, clothing, and baby pacifiers. 270nm UV LED and 280nm UV LED have strong sterilizing power and are suitable for environments requiring high-intensity sterilization such as hospitals and laboratories, as well as daily life and working environments such as homes and offices.

Experience advanced water disinfection with our 270nm led, 280nm led, ledcoupled with VC LED Diode. Our UVC technology ensures effective and reliable water purification, promoting a healthier environment with precision.

Products such as sterilization lamp, disinfection bag, air disinfection and sterilization, water purification and sterilization device equipped with self-developed UVC LED have been launched, which are characterized by high luminous efficiency, low power consumption, high reliability, and a service life of more than 10000 hours. A variety of sterilization methods covering surface sterilization, air sterilization, water sterilization, etc. can be applied in family scenes.

UV Led water disinfection
UV led sterilization

 The primary advantage of 270nm UV LED, 280nm UV LED are its germicidal properties. UV LED technology is known for its energy efficiency compared to traditional UV lamps, contributing to lower operational costs. UV LEDs are compact and can be easily integrated into various devices and systems, providing flexibility in design and application.UV LEDs are mercury-free, contributing to a more environmentally friendly option compared to traditional UV lamps that may contain mercury.

When considering the use of UV LED Diode, it's essential to consult with UV LED manufacturers or suppliers to understand specific product specifications and ensure proper integration into intended applications.



Toothbrush Disinfection
Towel Disinfection
uv led water sterilization
Germicidal Lamp
UV Led Diodes Application



uv c led diode
PEAKWAVELENGTH POWER FORWARDVOLTAGE FORWARDCURRENT RADIANTFLUX RADIATIONANGLE
270~280nm Led 16~21W 11~14V 1.5A 600~800mW 120
APPLICATIONS
UV LED Disinfection,
UV LED Sterilization,
Phototherapy,
Fluorescent Spectroscopy,
Sensor Light,
Bio-Analysis / Detection,
Counterfeit Detectors, etc
uv light diode
SMD LED diode-6868
PEAKWAVELENGTH POWER FORWARDVOLTAGE FORWARDCURRENT RADIANTFLUX RADIATIONANGLE
270~280nm UV LED 11~16.8W 11~14V 1~1.2A 400~600mW 120
APPLICATIONS
Disinfection,
 Sterilization,
Phototherapy,
Fluorescent Spectroscopy,
Sensor Light,
Bio-Analysis / Detection,
Counterfeit Detectors, etc
led smd diode
SMD LED diode-3535
PEAKWAVELENGTH POWER FORWARDVOLTAGE FORWARDCURRENT RADIANTFLUX RADIATIONANGLE
270~280nm UV LED 2.5~4.9W 5~7V 0.5~0.7A 80~120mW 120
APPLICATIONS
Disinfection,
Sterilization,
Phototherapy,
Fluorescent Spectroscopy,
Sensor Light,
Bio-Analysis / Detection,
Counterfeit Detectors, etc
LED smd diode-3535
Notes :
1. Peak Wavelength Measurement tolerance : ±3nm
2. Radiant Flux Measurement tolerance : ± 10%
3. Φe is the Total Radiant Flux as measured with an integrated sphere.
4. Forward Voltage Measurement tolerance : ±3%
5. RθJ-b is the thermal resistance between chip junction to PCB board bottom.
The PCB is made of aluminium and the size of PCB is 6.8mm by 6.8mm
Certificate


Company Advantages

· Adopted from raw materials, 360 nm led is friendly in use.

· A complete quality management system has been specially established to ensure the quality of this product.

· Before loading, all the 360 nm led will be through complete tests.


Company Features

· With the years of continuous efforts, Zhuhai Tianhui Electronic Co., Ltd. takes a stride in the development of 360 nm led.

· Zhuhai Tianhui Electronic Co., Ltd. has a group of senior design elite team and management personnel for 360 nm led development.

· We always participate in fairtrade and refuse vicious competition in the industry, such as causing administered inflation or product monopoly. Contact us!


Application of the Product

The 360 nm led produced by our company can be used in many fields.

We can provide customers with the most professional and effective solutions based on market research results and customer needs.

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
no data
one of the most professional UV LED suppliers in China
we are committed to LED diodesfor over 22+ years, a leading innovative LED chipsmanufacturer & supplier for UVC LED 255nm265nm 275nm, UVB LED 295nm ~ 315nm, UVA LED325nm 340nm 365nm ~ 405nm.
