Fine Quality 280 Nm Uv Made in China for Blood Analysis

Product details of the 280 nm uv

Product Information

Our 280 nm uv is in varies styles for wide choice. The function of the product has been continually improved by our dedicated R&D team. In order to better control quality, Zhuhai Tianhui Electronic Co., Ltd. has made a complete quality control system.

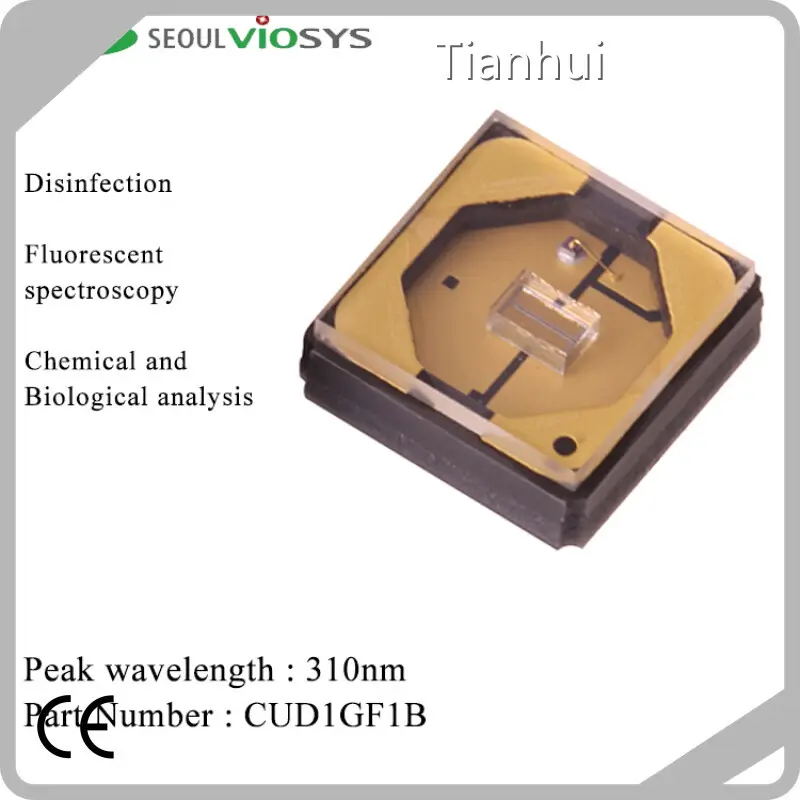

CUD1GF1B is a deep ultraviolet light emitting diode with peak emission wavelengths from 305nm to 315nm.

The LED is sealed in Ceramic packages including an optical transparent window.

It incorporates state of the art SMD design and low thermal resistance.

CUD1GF1B is designed for air and water sterilization and tools including chemical and biological analysis in that spectral range.

Application

这是一段描述

Disinfection

Fluorescent Spectroscopy

Chemical and Biological Analysis

Parameters

这是一段描述

Item	Specifications
Model	CUD1GF1B
Rated voltage	5~7V
UVC radiation flux	6mW
UVC Wavelength	304~315nm
Input current	100mA
Input power	0.5~0.7W
Storage temperature	-40℃-100℃

Remarks

这是一段描述

• Peak wavelength（ λ p) The measurement tolerance is ± 3nm.

• Radiation flux（ Φ e) Measurement tolerance ± 10%.

• The measurement tolerance of forward voltage (VF) is ± 3%.

Packaging method (reference standard data)

这是一段描述

Warning Instructions For Use

这是一段描述

1. To avoid energy decay, keep the front glass clean.

2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.

3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.

4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not

recommended that the glue of the outlet hole of the module directly contact the drinking water.

5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged

6. Human safety

Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.

If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be

used to protect the body. Attach the following warning labels to products / systems
