Product Overview

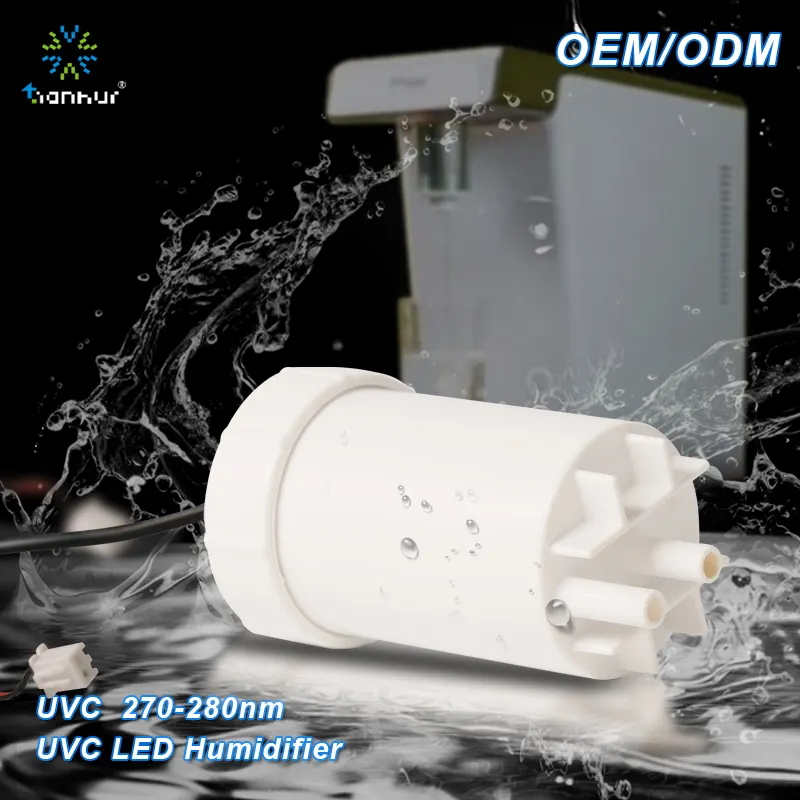

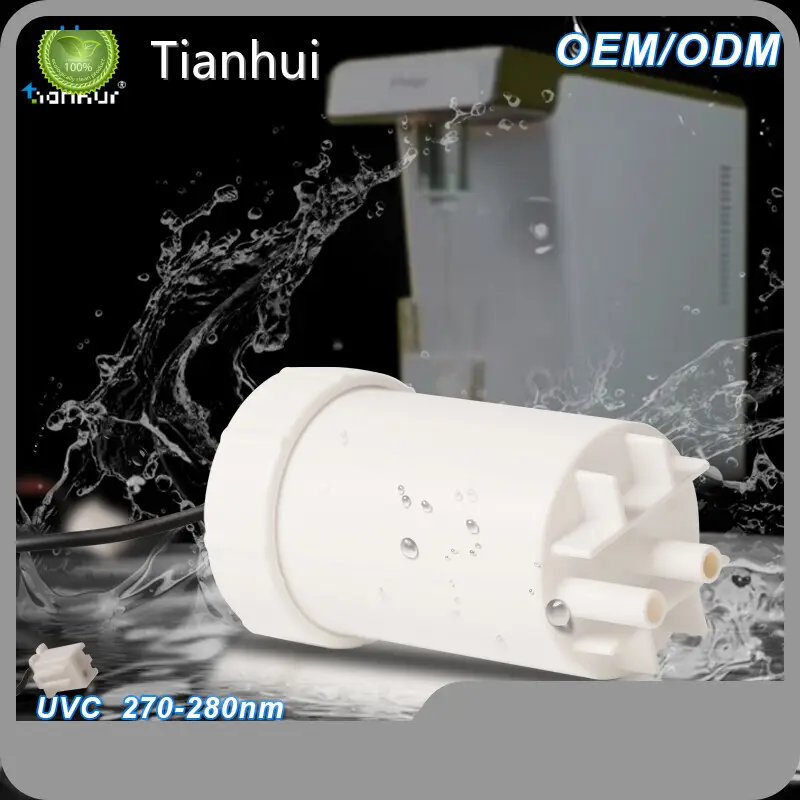

The product is a custom UVC LED water disinfection module with a brand name of Tianhui. It has a module number of TH-UVC-PA01-B and operates at a UVC wavelength of 270~280nm. The product has a waterproof grade of shell IP65 and a rated voltage of DC24V.

Custom Uvc Led Water Desinfection Module >10(pieces):Negotiable(days) Tianhui TH-UVC-PA01-B 7

Custom Uvc Led Water Desinfection Module >10(pieces):Negotiable(days) Tianhui TH-UVC-PA01-B 8

Product Features

- The UVC radiation flux of the module ranges from 50~240mW.

- The input current is 300mA and the input power is 5~15W.

- The size of the module is φ49*90mm and the net weight is 91±5g.

- It has a water pipe interface of ¼" with a quick connector.

- The module has a dielectric strength of DC500V, 1min@10mA, Leakage Current.

- It is designed to withstand water pressure of 0.5~1Mpa.

- The module can be customized with different wire rod lengths and terminals.

Product Value

- The UVC LED water disinfection module provides an efficient and reliable solution for water purification.

- It ensures the elimination of harmful microorganisms, providing clean and safe water for various applications.

- The module's compact size and customizable options make it suitable for different water systems.

- It offers a long lamp bead life of 10,000 to 25,000 hours, reducing the need for frequent replacements.

- The product is designed with a waterproof shell to withstand water exposure and ensure durability.

Custom Uvc Led Water Desinfection Module >10(pieces):Negotiable(days) Tianhui TH-UVC-PA01-B 9

Custom Uvc Led Water Desinfection Module >10(pieces):Negotiable(days) Tianhui TH-UVC-PA01-B 10

Product Advantages

- The module offers a wide UVC radiation flux range, allowing flexible application in different water flow rates.

- It has a high dielectric strength, ensuring safe use without the risk of electrical damage.

- The product's customizable wire rod length and terminals enable easy installation and integration into different water systems.

- With its compact size, the module can be easily fitted into various equipment and appliances.

- The long lamp bead life of the module significantly reduces maintenance and replacement costs.

Application Scenarios

The UVC LED water disinfection module can be applied in various scenarios including:

- Drinking machines

- Ice machines

- Kitchen water purifiers

- Air humidifiers

- Pet water dispensers

- Tea bar machines

(Note: Price details and quantity discounts can be obtained by contacting the sales staff for a real-time quotation)

Custom Uvc Led Water Desinfection Module >10(pieces):Negotiable(days) Tianhui TH-UVC-PA01-B 11

Custom Uvc Led Water Desinfection Module >10(pieces):Negotiable(days) Tianhui TH-UVC-PA01-B 12

Custom Uvc Led Water Desinfection Module >10(pieces):Negotiable(days) Tianhui TH-UVC-PA01-B 13

Custom Uvc Led Water Desinfection Module >10(pieces):Negotiable(days) Tianhui TH-UVC-PA01-B 14

Custom Uvc Led Water Desinfection Module >10(pieces):Negotiable(days) Tianhui TH-UVC-PA01-B 15

Custom Uvc Led Water Desinfection Module >10(pieces):Negotiable(days) Tianhui TH-UVC-PA01-B 16

Custom Uvc Led Water Desinfection Module >10(pieces):Negotiable(days) Tianhui TH-UVC-PA01-B 17

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
