Warning Instructions For Use
Tianhui- one of the leading UV LED chip manufacturers and suppliers provides ODM/OEM UV led chip service for over 22+ years.
Custom Uv Led Package Tianhui 270~280nm 600~800mW THUV275T15WS400-6868
UV Wavelength:
270~280nm
UV radiation flux:
600~800mW
Input Voltage:
11~14V
Color:
UV
Model:
THUV275T15WS400-6868
Company Advantages
· Tianhui uv led package meets the international standard for electrical appliances. No matter is the quality of electric parts or the housing and insulation material, they all made strictly according to regulations.
· With our extensive expertise in this field, the quality of our products is the best.
· With high operational accuracy, the product is not likely to occur errors, which eventually beneficial to reduce production costs.

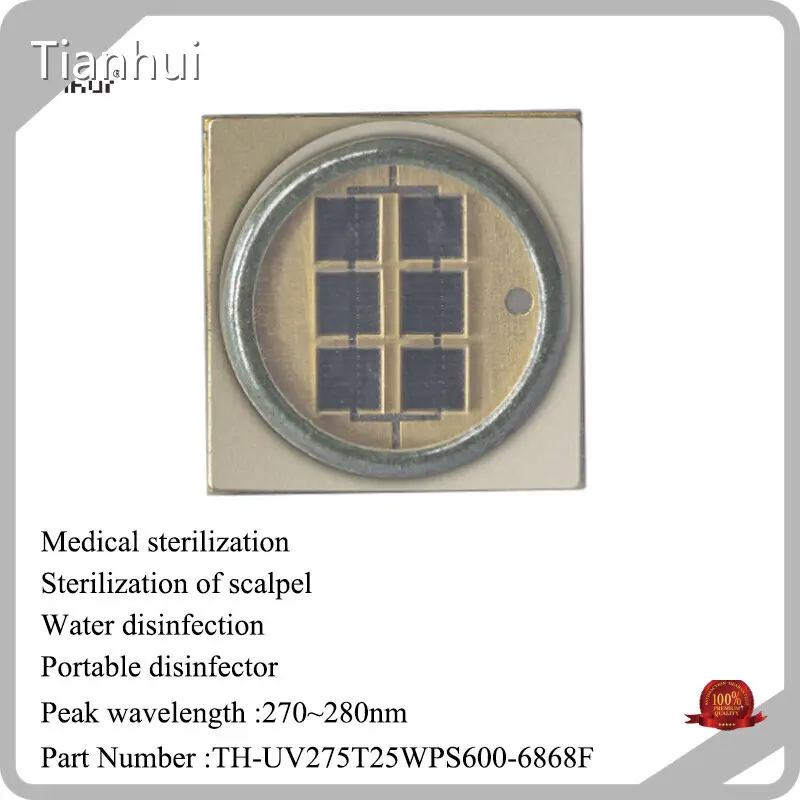

UVC LED270-280nm Air Sterilization Surface Water Sterilizing Disinfection High Power SMD 6868
| PEAKWAVELENGTH | POWER | FORWARDVOLTAGE | FORWARDCURRENT | RADIANTFLUX | RADIATIONANGLE |
| 270~280nm | 16~21W | 11~14V | 1.5A | 600~800mW | 120 |
| APPLICATIONS |
Medical Sterilization Sterilization of Scalpel Water Disinfection Portable Disinfector
|
||||
About UVC(270~280nm) wavelength
Main applications of UVC include water/air/surface disinfection/purification, analytical instruments (spectrophotometry, liquid chromatography, gas chromatography, etc.), mineral analysis. The UVC band has short wavelength and high energy, which can destroy the molecular structure in cells, prevent its reproduction by destroying the DNA and RNA of microorganisms, and can efficiently and quickly kill bacteria with a broad spectrum. It is widely used in the sterilization and disinfection of water, air, etc.
As an efficient and environmentally friendly ultraviolet disinfection technology, UVC LED chips have been widely used in various fields in recent years. Its small and portable features and excellent disinfection effect make it the first choice for many industries and fields. Next, we will explore together in which application fields UVC LED chips have shown unique advantages.
1. Household disinfection: The family is our warmest place, but it is also an important place for germs to breed. UVC LED chips are widely used in household disinfection equipment, such as household air purifiers, dishwashers, washing machines, etc. These devices use the ultraviolet rays emitted by UVC LED chips to efficiently kill bacteria and viruses in the air and on the surface of objects, making the home environment cleaner and more hygienic.
2. Medical and health: In the medical field, UVC LED chips are used in operating rooms, diagnostic equipment, and medical water treatment. By integrating UVC LED chips into medical equipment, rapid and reliable disinfection can be achieved, greatly reducing the risk of cross-infection. In addition, UVC LED chips can also be used for disinfection of personal protective equipment such as sterilization boxes and medical masks to ensure the safety of medical staff and patients.
3. Food safety: Food safety has always been a concern, and UVC LED chips play an important role in this field. It can be used in food processing equipment, food storage areas and sanitary equipment in catering establishments. By using UVC LED chips for food disinfection, it can efficiently kill bacteria and viruses on the surface of food, ensuring food safety and hygiene.
4. Water treatment: Water is an essential resource in life, and UVC LED chips can play an important role in water treatment. It can be applied to tap water purification equipment, drinking fountains, swimming pools, etc. By using UVC LED chips to sterilize water with ultraviolet light, it can efficiently kill bacteria, viruses, algae and other microorganisms in water
1. To avoid energy decay, keep the front glass clean.
2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.
3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.
4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not
recommended that the glue of the outlet hole of the module directly contact the drinking water.
5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged
6. Human safety
Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.
If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be
used to protect the body. Attach the following warning labels to products / systems
Company Features
· Years of experience in the manufacturing of uv led package has made Zhuhai Tianhui Electronic Co., Ltd. an expert. We are a credible company in this field.
· Zhuhai Tianhui Electronic Co., Ltd. is equipped with advanced processing equipment for uv led package. Zhuhai Tianhui Electronic Co., Ltd. owns technology research and development center for uv led package. Zhuhai Tianhui Electronic Co., Ltd. has abundant technical force and the economic potentiality.
· Zhuhai Tianhui Electronic Co., Ltd. is ready to solve various problems for our customers. Contact!
Product Details
We are not afraid of customers to pay attention to the details of our uv led package.
Application of the Product
Tianhui's uv led package is widely used in multiple industries and fields.
In addition to high-quality products, Tianhui also provides effective solutions based on the actual conditions and the needs of different customers.
Product Comparison
Tianhui's technical level is higher than its peers. Compared with peer products, the uv led package produced by us has the following highlights.
Enterprise Advantages
Tianhui has a professional technical team with rich experience and exquisite technology. The team members are dedicated to providing experience guidance and technical support for the production of high-quality products. This guarantees the best quality of products.
Our company has a mature service team. It can provide quality services for customers in the whole process of sales.
Clinging to the initial heart, Tianhui always abides by the core values of 'fair-minded, honest and trustworthy, positive and aspirant, excellent and innovative'. We spare our effort to develop ourselves into a company with social responsibility, market competitiveness and long-term vitality.
Since the beginning in our company has been focusing on the production and research of UV LED Module, UV LED System, UV LED Diode with rich experience.
Tianhui's UV LED Module, UV LED System, UV LED Diode are deeply trusted by customers. They occupy a large market share in China and are exported to Europe, America, Southeast Asia, and other countries and regions.
