Tianhui- one of the leading UV LED chip manufacturers and suppliers provides ODM/OEM UV led chip service.

Custom Uv Led 300nm 40~60mW / 80~100mW Tianhui 1
Custom Uv Led 300nm 40~60mW / 80~100mW Tianhui 2
Custom Uv Led 300nm 40~60mW / 80~100mW Tianhui 3
Custom Uv Led 300nm 40~60mW / 80~100mW Tianhui 4
Custom Uv Led 300nm 40~60mW / 80~100mW Tianhui 1
Custom Uv Led 300nm 40~60mW / 80~100mW Tianhui 2
Custom Uv Led 300nm 40~60mW / 80~100mW Tianhui 3
Custom Uv Led 300nm 40~60mW / 80~100mW Tianhui 4

Custom Uv Led 300nm 40~60mW / 80~100mW Tianhui

UV Wavelength:
UV radiation flux:
40~60mW / 80~100mW
Consumption Power (W):
TH-UV(x)T1WPS40-3535F Series

Company Advantages

· The shapes and colors of uv led 300nm can be customized based on customer's requirements.

· This product is safe and durable with long service life.

· The product is competitive in the market meeting the ever-changing needs of customers.

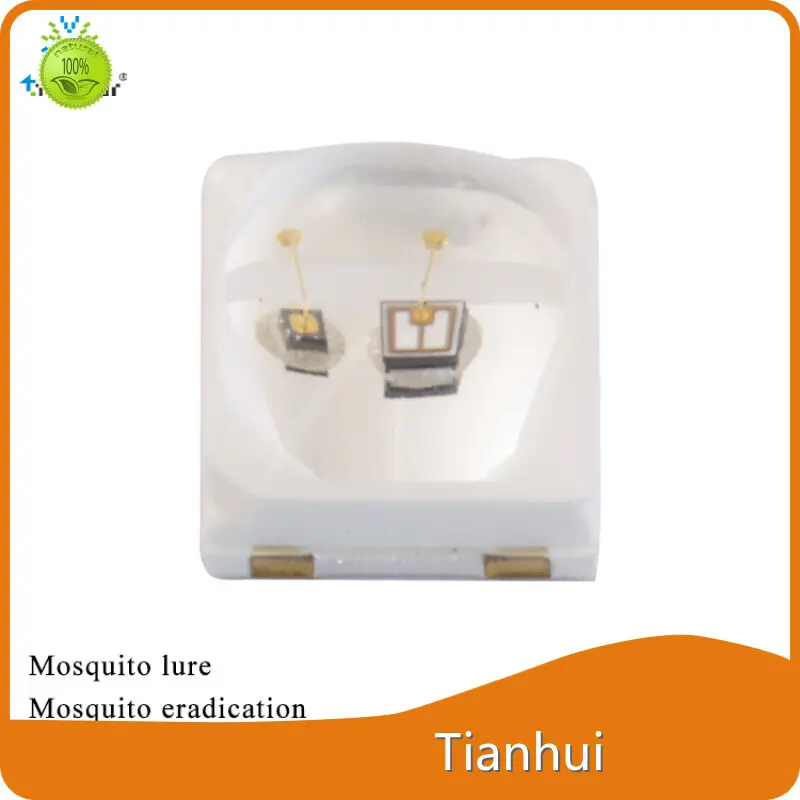

UV LED 365~375nm UVA LED Beads Series for Mosquito Lure Mosquito Eradication

Items Condition Min. Typ. Max. Unit
Forward Current - - 60 - mA
Forward Voltage IF=60mA 3 3.5 4 V
Radiant Flux IF=60mA 40 - 60 mW
Peak Wavelength IF=60mA 365 - 375 nm
Viewing Angle IF=60mA - 120 - deg.
Spectrum Half Width IF=60mA - 12 - nm
Themal Resistance IF=60mA - 8.4 - ℃/W
0 (2)
Items Condition Min. Typ. Max. Unit
Forward Current - - 100 - mA
Forward Voltage IF=100mA 3 3.6 4 V
Radiant Flux IF=100mA 80 - 100 mW
Peak Wavelength IF=100mA 365 - 375 nm
Viewing Angle IF=100mA - 120 - deg.
Spectrum Half Width IF=100mA - 12 - nm
Themal Resistance IF=100mA - 8.4 - ℃/W
213 (3)

UVA ultraviolet rays conform to the phototaxis response curve of insects and can be used to lure insects

The mosquito trap lamp emits blue light. The mosquito trap lamp uses a blue purple tube, and the light emitted by the tube belongs to the UVA in ultraviolet light, with the wavelength of the light being the key, ranging from 355 to 370 nanometers. Suggest choosing a stronger luminosity


Do not place them in the same place for a long time. It is best to place the mosquito trap lamp above the knee height. Usually, a small stool can be used, but it should not exceed 180 centimeters, as this is the range where mosquitoes often fly, and a secluded place is the best choice. It is best to change the placement location frequently, and hidden corners and under the table are the best places.

Due to mosquitoes' preference for acidic substances, adding a little water and vinegar to the tray of the mosquito trap can increase its effectiveness. Using skincare products such as sheep oil and Chevrolet can also increase mosquito attraction.

Regularly clean mosquito traps and keep them clean, and mosquitoes usually do not approach their companions' bodies when they see them.

When using mosquito traps, other indoor light sources should be turned off. Because mosquitoes are disturbed, they cannot feel the light source of the mosquito trap lamp, greatly reducing the mosquito catching effect. Similarly, using mosquito traps during the day may result in poorer results.

- (25)

Multiple use options





Living Room



Warning Instructions For Use

1. To avoid energy decay, keep the front glass clean.

2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.

3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.

4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not

recommended that the glue of the outlet hole of the module directly contact the drinking water.

5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged

6. Human safety

Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.

If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be

used to protect the body. Attach the following warning labels to products / systems


Company Features

· Zhuhai Tianhui Electronic Co., Ltd. takes an important lead in the markets. We are a modern manufacturer and supplier of quality uv led 300nm.

· Zhuhai Tianhui Electronic Co., Ltd. has a number of years of experience in the production of uv led 300nm. Zhuhai Tianhui Electronic Co., Ltd. has a professional product development team and management team. Zhuhai Tianhui Electronic Co., Ltd.'s product development team is familiar with the quality requirements of various uv led 300nm products.

· Zhuhai Tianhui Electronic Co., Ltd. always keeps the true needs of customers in mind and works hard toward it. Inquire online!

Enterprise Advantages

Focusing on the production and development of products, our company has formed an excellent management team, an experienced operation team and a technical team in the industry, which provides a strong foundation for our development.

Tianhui has always been dedicated to providing quality services based on customer demand.

Tianhui adheres to the business philosophy of 'detail determines quality and integrity continues market'. We always strive for survival by quality and achieve development through reputation. And the benefit is gained from management. We are committed to providing effective solutions for customers at home and abroad.

Our company was founded in Over years, we have constantly innovated our business philosophy. By strengthening internal management and improving production technology, we strive to provide more and better products and services for the society.

Since the inception, our company has been constantly developing and innovating in the pace of time. At present, our products are sold well in the domestic market, and they occupy many foreign markets with a wide range of sales.
