Custom 100mA DC 12V Uv Led Water Disinfection Tianhui IP67

Waterproof grade:

IP67

Rated voltage:

DC 12V

Product name:

TH-UVC-PA04

Input current:

100mA

Lead_Time:

1 - 10(pieces):15(days),>10(pieces):Negotiable(days)

Inquiry

Product details of the uv led water disinfection

Product Information

The production of Tianhui uv led water disinfection adopts modern innovation concepts in consistence with industry trends. It is manufactured in an audited facility that meets rigorous quality standards. Popularity, good reputation, orientation are three evaluation index norms of Zhuhai Tianhui Electronic Co., Ltd. image.

Custom 100mA DC 12V Uv Led Water Disinfection Tianhui IP67 4

Description

Custom 100mA DC 12V Uv Led Water Disinfection Tianhui IP67 5

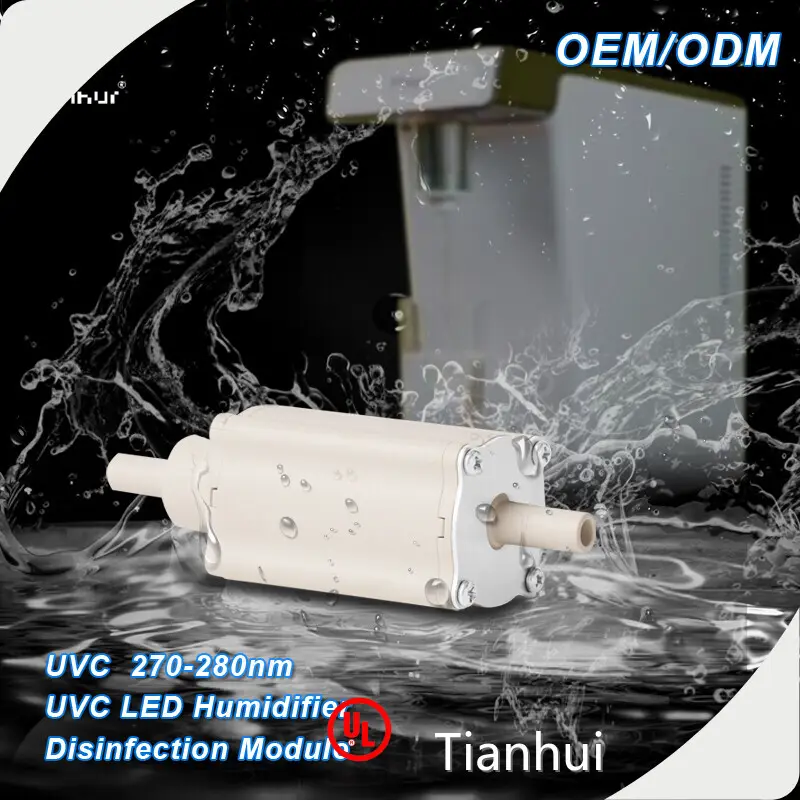

TH-UVC-PA04 is a UVC LED overcurrent water sterilization module. The circuit's driver board is built into the module's interior to save space. The module relies on water flow to dissipate heat and comes with a water flow switch to prevent burnout due to water cutoff. The module is suitable for installation in the middle section of the water circuit.

The UVC LEDs used have a wavelength range of 270-280nm and have excellent and efficient sterilization effects. The internal UVC high reflectivity cavity can effectively improve the utilization of UV light, thus significantly enhancing the sterilization effect.

Application

Custom 100mA DC 12V Uv Led Water Disinfection Tianhui IP67 6

Drinking machine	Ice machine	Air humidifier
Air purifier	Pet water dispenser	Dishwasher

Parameters

Item	Specifications	Remark
Model	TH-UVC-DEM04	-
Rated voltage	DC 12V	Customizable
UVC radiation flux	≥5mW	-
UVC Wavelength	270-285nm	-
Input current	50±10mA	According to the lamp bead selection
Input power	0.6W	-
Waterproof grade	IP67	-
Wire rod	200±10mm	Customizable
Terminals	XHB2.54，2Pin，yellow	Customizable
Lamp bead life	>10,000 hours	-
Dielectric Strength	DC500 V,1min@10mA, Leakage current
Working temperature	-25℃-40℃	-
Storage temperature	-40℃-85℃	-

Remarks

Peak wavelength（ λ p) The measurement tolerance is ±3nm.

Radiant flux（ Φ e) Measurement tolerance±10%.

The measurement tolerance of forward voltage (Vf) is±3%.

Overall dimension

Custom 100mA DC 12V Uv Led Water Disinfection Tianhui IP67 7

Packaging method (reference standard data)

Custom 100mA DC 12V Uv Led Water Disinfection Tianhui IP67 8

Warning Instructions For Use

1. To avoid energy decay, keep the front glass clean.

2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.

3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.

4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not

recommended that the glue of the outlet hole of the module directly contact the drinking water.

5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged

6. Human safety

Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.

If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be

used to protect the body. Attach the following warning labels to products / systems
