Curing Led Tianhui

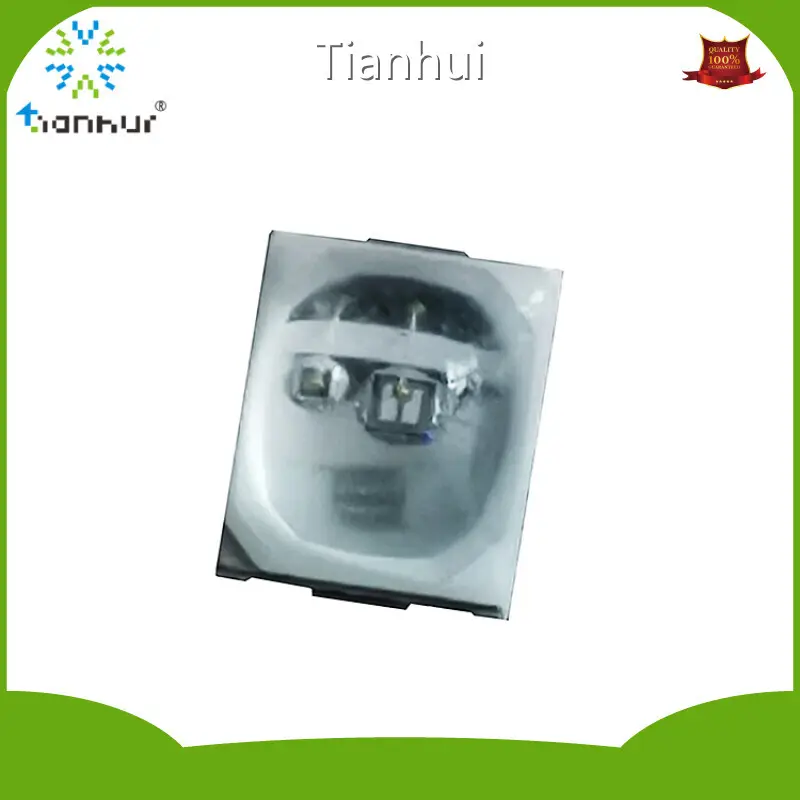

Zhuhai Tianhui UV LED 365nm 2835 for Nail Curing Mosquito Trap UV Curing Fluorescence Detection


Product Description


        Produt        Model: Peak wavelength:      Forward       Current:      Forward      Voltage:      Radiated      Power:
TH-UV365T30MW-2835      365-375nm 20mA 3.0-4.0V 30-40mW
Viewing Angle: Maximum operating current:
Junction Temperature: Operating Temperature:      Storage          Temperature:
120° 60MA 125 °C -30~+60°C -40~+100°C


Package Outline:

 Curing Led Tianhui 5

Curing Led Tianhui 6


Relative Spectral Power Distribution:


Curing Led Tianhui 7

 Raidiation Pattern:

Curing Led Tianhui 8

Related Products

Curing Led Tianhui 9Curing Led Tianhui 10

Curing Led Tianhui 11Curing Led Tianhui 12

Packaging & Shipping


Inner packaging: tape& reel, 1000pcs/reel, ESD bag

Outside packaging:carton


Express(DHL, EMS, UPS, Fedex etc.)

Curing Led Tianhui 13


Company Information


Professional UV LED Supplier

Zhuhai Tianhui Electronic Co., Ltdis the earliest and the most professional UV LED manufacturers engaging in UV LEDs with complete series of products, stable quality and competitive prices.

Our products are widely applied in banknote counting & detecting, fake notes preventing & distinguishing, sterilization, leakage test, selection, medical care, curing, mosquito killing, and other fields.

Curing Led Tianhui 14

For more information, please contact us!

Company Advantages

· Tianhui curing led is made of semiconductor material, and its chip is enclosed with epoxy resin so as to protect the core wire. Therefore, LEDs feature good shock resistance.

· The product has a long service life. The end face of the product is made of self-lubricating and wear-resistant material composition which enhances its wearability.

· This product is over and above our rival's product, and yet we're able to sell it at the same price.

Company Features

· Tianhui is famous for its high quality curing led and considerate service.

· We have a team of talented engineers committing to the quality of our products including curing led. Their extensive expertise and unique industry experience have helped improve quality.

· We make it our goal to maintain strong business relationships with our clients. Welcome to visit our factory!

Application of the Product

Tianhui's curing led can be applied to different fields.

Tianhui has been engaged in the production of UV LED Module, UV LED System, UV LED Diode for many years and has accumulated rich industry experience. We have the ability to provide comprehensive and quality solutions according to actual situations and needs of different customers.
