Creative 365 Nm Tianhui Company

Company Advantages

· Tianhui 365 nm is made of materials with good and stable properties.

· Because 365 nm is really economical in price, it will have a bright future.

· It has more advantages compared to other competing products.

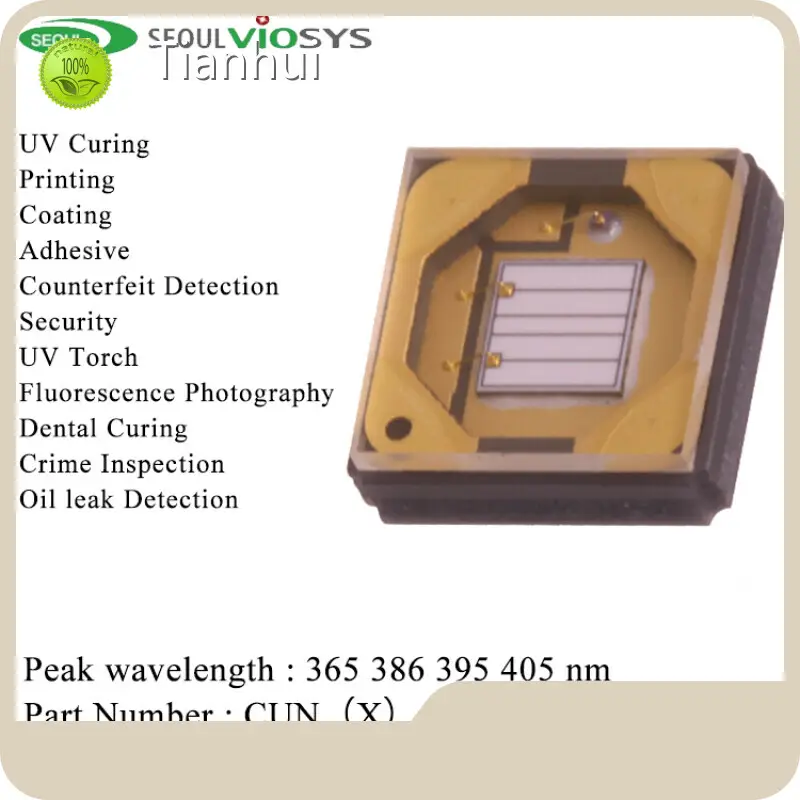

High power UV LED series are designed for high current operation and high power output applications. It incorporates state of the art SMD design and low thermal resistant material. CA3535 is ideal UV light source for curing, printing, and detecting applications.

Application

这是一段描述

Printing	Dental Curing	UV Curing
Crime Inspection	Oil Leak Detection	Fluorescence Photography

Parameters

这是一段描述

Item	Specifications
Model	CUN(x)GF1A Series
Rated voltage	3.5~3.7V
UV radiation flux	1.4~1.7W
UV Wavelength	360~370nm 380~390nm 390~400nm 400~410nm
Input current	1A
Input power	3.5~3.7W
Working temperature	-10℃-85℃
Storage temperature	-40℃-100℃

Remarks

这是一段描述

• Peak wavelength（ λ p) The measurement tolerance is ± 3nm.

• Radiation flux（ Φ e) Measurement tolerance ± 10%.

• The measurement tolerance of forward voltage (VF) is ± 3%.

Warning Instructions For Use

这是一段描述

1. To avoid energy decay, keep the front glass clean.

2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.

3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.

4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not

recommended that the glue of the outlet hole of the module directly contact the drinking water.

5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged

6. Human safety

Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.

If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be

used to protect the body. Attach the following warning labels to products / systems

Company Features

· Except exquisite 365 nm, Zhuhai Tianhui Electronic Co., Ltd. is also highly recommended by customers for its exquisite service.

· Our factory has sophisticated machines and equipment. These facilities help us reduce our reliance on manual labor and waste of raw materials. Our factory has advanced manufacturing equipment. In addition to providing better security features for our own employees, they can also bring faster speed and higher productivity.

· We continuously optimize our products as well as our processes. The objective is to always remain a modern, dynamic and value-adding partner.

Application of the Product

Tianhui's 365 nm can be applied to different fields.

Tianhui has been engaged in the production of UV LED Module, UV LED System, UV LED Diode for many years and has accumulated rich industry experience. We have the ability to provide comprehensive and quality solutions according to actual situations and needs of different customers.

Product Comparison

Compared with similar products, the 365 nm of Tianhui is more strict in the selection of raw materials. The specific aspects are as follows.
