Product details of the 295 nm uv led

Product Description

295 nm uv led from Zhuhai Tianhui Electronic Co., Ltd. conveys unique innovative product concept. This product has unparalleled advantages of other products, such as long life and stable performance. The product conforming to technical standards better serves the field.

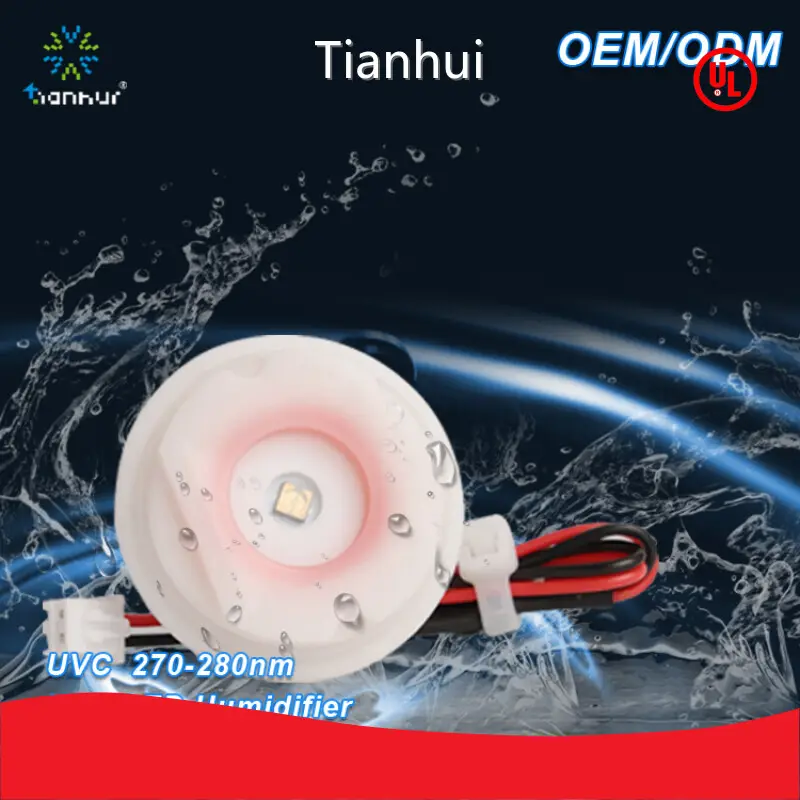

TH-UVC-C01 It is a static UVC LED bacteriostasis module for air and liquid bacteriostasis. It is suitable for closed cavity structure with water tank.



It can be installed at the top, side wall and bottom. The light emitting surface meets the waterproof requirements of IP65. Even if it is installed at the bottom of the water tank, there is no need to worry about water leakage.



The wavelength range of UVC LED used is 260-280nm, which has excellent and efficient sterilization and disinfection effect. The surface is made of UV high permeability quartz glass and UV reflector, which can improve the effective utilization of UVC and significantly improve the sterilization effect.



All materials meet the environmental protection requirements of ROHS and reach, and all water related parts meet the requirements of food safety and water batch.

Application

这是一段描述

Drinking machine	Ice machine	Air humidifier	Air purifier
Aromatherapy machine	Pet water dispenser	Dishwasher

Parameters

这是一段描述

Item	Specifications	Remark
Model	TH-UVC-C01	-
Opening Hole size	27.3±0.3mm	Round hole
Rated voltage	DC 12Vor DC24V	Customizable
UVC radiation flux	4-6mW	-
UVC Wavelength	260-280nm	-
Input current	40mA	According to LED selection
Input power	0.2-0.4W	According to LED selection
Waterproof grade	IP65	The polished surface is fully waterproof
Wire rod	500±10mm	Line length can be customized
Terminals	XH2.54, White	Terminals can be customized
Lamp bead life	10,000-25,000 hours	According to LED selection
Dielectric Strength	DC500 V,1min@10mA, Leakage current
Size	φ38 x 19.6 mm
Net weight	26±5g
Working temperature	-25℃-40℃	-
Storage temperature	-40℃-85℃	-

Remarks

这是一段描述

• Peak wavelength（ λ p) The measurement tolerance is ± 3nm.

• Radiation flux（ Φ e) Measurement tolerance ± 10%.

• The measurement tolerance of forward voltage (VF) is ± 3%.

Overall dimension

这是一段描述

• Module size - φ38 x 19.6 (Diameter x height )

• Tolerance ±0.5mm

Usage method

这是一段描述

Packaging method (reference standard data)

这是一段描述

Warning Instructions For Use

这是一段描述

1. To avoid energy decay, keep the front glass clean.

2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.

3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.

4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not

recommended that the glue of the outlet hole of the module directly contact the drinking water.

5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged

6. Human safety

Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.

If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be

used to protect the body. Attach the following warning labels to products / systems
