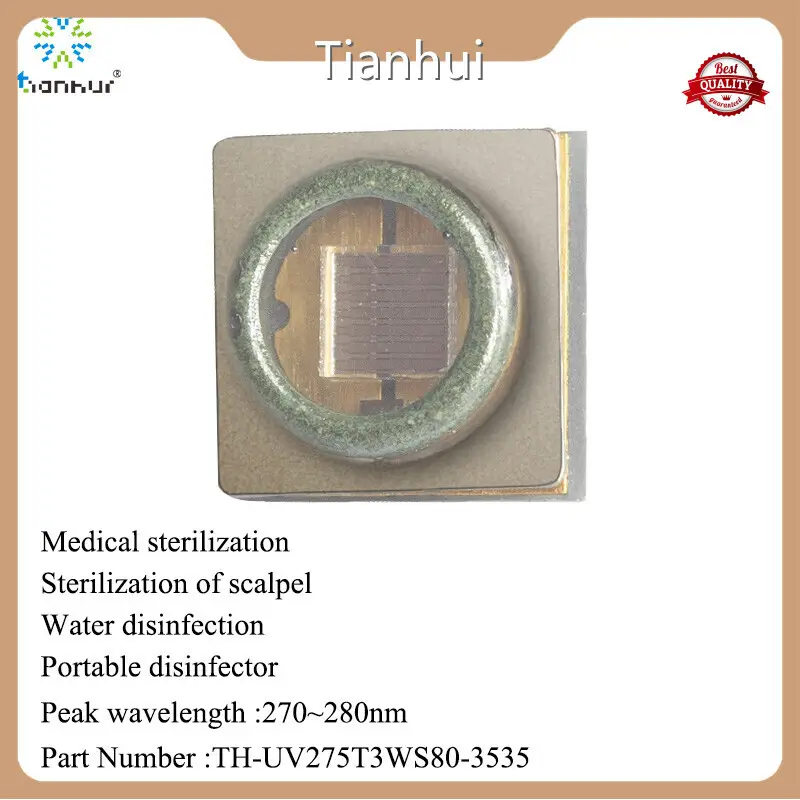

Product details of the uvc lamp medical
Quick Detail
uvc lamp medical's design offers a unique visual experience. Through optimizing design, the actual application shows that uvc lamp medical has low cost and a long service life. The uvc lamp medical produced by our company can be applied to different fields and scenarios. So the different requirements of different people can be satisfied. This product is proved be applicable to meet the various requirements of our customers.
Product Information
uvc lamp medical's outstanding quality is shown in the details.
Electro-Optical characteristics at mA | |||||
Items | Condition | Min. | Typ. | Max. | Unit |
Forward Current | IF = 350mA | 350 | mA | ||
Forward Voltage | IF = 350mA | 4.8 | 5.8 | 7.0 | V |
Radiant Flux | IF = 350mA | 35 | 50 | 80 | mW |
Peak Wavelength | IF = 350mA | 250 | 255 | 260 | nm |
260 | 265 | 270 | |||
270 | 275 | 280 | |||
280 | 285 | 290 | |||
290 | 295 | 300 | |||
300 | 305 | 310 | |||
310 | 215 | 320 | |||
Viewing Angle | IF = 350mA | 120 | deg. | ||
Spectrum Half Width | 10 | nm | |||
Thermal Resistance | 15.2 | ºC /W |
Main applications of UVC include water/air/surface disinfection/purification, analytical instruments (spectrophotometry, liquid chromatography, gas chromatography, etc.), mineral analysis. The UVC band has short wavelength and high energy, which can destroy the molecular structure in cells, prevent its reproduction by destroying the DNA and RNA of microorganisms, and can efficiently and quickly kill bacteria with a broad spectrum. It is widely used in the sterilization and disinfection of water, air, etc.
As an efficient and environmentally friendly ultraviolet disinfection technology, UVC LED chips have been widely used in various fields in recent years. Its small and portable features and excellent disinfection effect make it the first choice for many industries and fields. Next, we will explore together in which application fields UVC LED chips have shown unique advantages.
1. Household disinfection: The family is our warmest place, but it is also an important place for germs to breed. UVC LED chips are widely used in household disinfection equipment, such as household air purifiers, dishwashers, washing machines, etc. These devices use the ultraviolet rays emitted by UVC LED chips to efficiently kill bacteria and viruses in the air and on the surface of objects, making the home environment cleaner and more hygienic.
2. Medical and health: In the medical field, UVC LED chips are used in operating rooms, diagnostic equipment, and medical water treatment. By integrating UVC LED chips into medical equipment, rapid and reliable disinfection can be achieved, greatly reducing the risk of cross-infection. In addition, UVC LED chips can also be used for disinfection of personal protective equipment such as sterilization boxes and medical masks to ensure the safety of medical staff and patients.
3. Food safety: Food safety has always been a concern, and UVC LED chips play an important role in this field. It can be used in food processing equipment, food storage areas and sanitary equipment in catering establishments. By using UVC LED chips for food disinfection, it can efficiently kill bacteria and viruses on the surface of food, ensuring food safety and hygiene.
4. Water treatment: Water is an essential resource in life, and UVC LED chips can play an important role in water treatment. It can be applied to tap water purification equipment, drinking fountains, swimming pools, etc. By using UVC LED chips to sterilize water with ultraviolet light, it can efficiently kill bacteria, viruses, algae and other microorganisms in water
Warning Instructions For Use
1. To avoid energy decay, keep the front glass clean.
2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.
3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.
4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not
recommended that the glue of the outlet hole of the module directly contact the drinking water.
5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged
6. Human safety
Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.
If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be
used to protect the body. Attach the following warning labels to products / systems
Company Information
With a proud history of innovation and focuses on providing exceptional uvc lamp medical, Zhuhai Tianhui Electronic Co., Ltd. has become one of the most competitive manufacturers. Zhuhai Tianhui Electronic Co., Ltd. has established a framework helps structure the actual product development. We constantly search for new and innovative ways to reduce energy consumption, eliminate waste, and reuse materials. Through these ways, we minimize our impact on the environment and develop a sustainable footprint.
We sincerely welcome customers with needs to contact us and cooperate with us!
