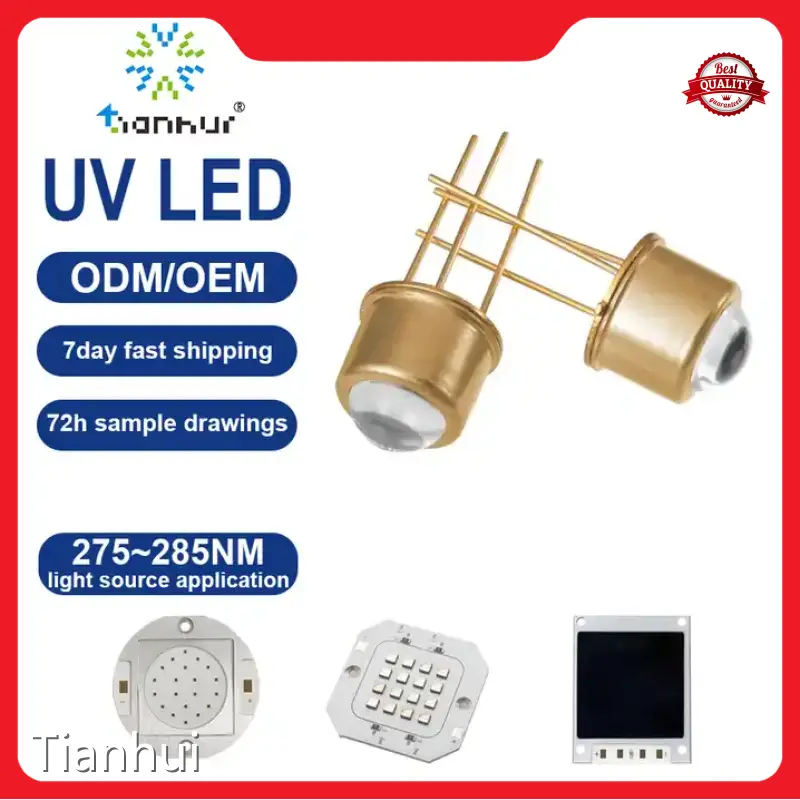

365nm Led 6V Tianhui

TH-UV255WP-TO46H

250~260NM uVC LED

Disinfection/Fluorescent Spectroscopy/

Chemical and Biological Analysis

Application

这是一段描述

Disinfection

Fluorescent Spectroscopy

Chemical and Biological Analysis

Parameters

这是一段描述

Item	Specifications
Model	TH-UV255WP-TO46H
Rated voltage	4.8~7V
UVC radiation flux	0.5~2.5mW
UVC Wavelength	250~260nm
Input current	20mA
Input power	0.1-0.14W
Working temperature	-10℃-85℃
Storage temperature	-40℃-100℃

Remarks

这是一段描述

• Peak wavelength（ λ p) The measurement tolerance is ± 3nm.

• Radiation flux（ Φ e) Measurement tolerance ± 10%.

• The measurement tolerance of forward voltage (VF) is ± 3%.

Usage method

这是一段描述

Warning Instructions For Use

这是一段描述

1. To avoid energy decay, keep the front glass clean.

2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.

3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.

4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not

recommended that the glue of the outlet hole of the module directly contact the drinking water.

5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged

6. Human safety

Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.

If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be

used to protect the body. Attach the following warning labels to products / systems
