Company Advantages

· Tianhui 365 405nm is made of the finest quality materials which has been tested carefully before production.

· We have added as much clever solutions and functions as possible into this product.

· Now the large-scale production, sales and logistics network of Zhuhai Tianhui Electronic Co., Ltd. covers many provinces, cities and autonomous regions in China.

Brand	Tianhui
Module	TH-UVC-PA01-B
UVC Wavelength	265nm uv led ~280nm uv led
Input Current	300mA
Waterproof Grade of Shell	IP65
Rated Voltage	DC24V
UVC Radiation Flux	50~240mW
Applicable Water Temperature	0℃~40℃
Size	φ49*90mm
Applicable Water Pressure	0.5~1Mpa

265nm 275nm 280nm UVC Led Module Application

Drinking machine/lce machine/Kitchen water purifier

Air humidifier/Pet water dispenser/Tea bar machine

Price Description: please consult with our sales staff for specific prices.

Contact us for real-time quotation, better price for large quantities!

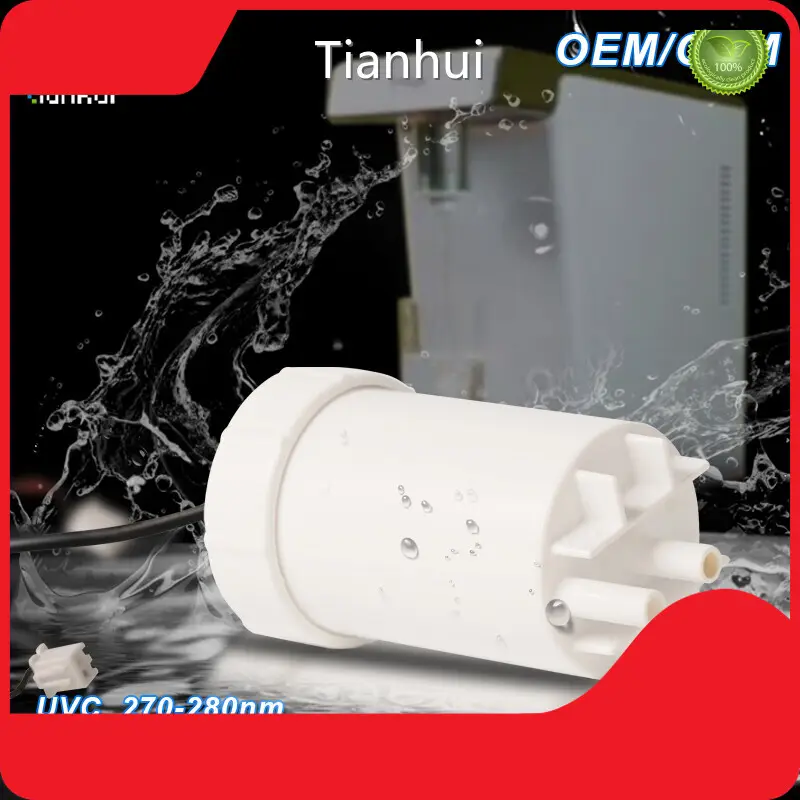

UVC Led water sterilizer Product Information
Item	Specification	Remark
Module	TH-UVC-PA01-B	-
Water Pipe interface	1/4”, quick connector	Customizable
Rated Voltage	DC24V	Customizable
UVC Radiation Flux	50~240mW	Matched 1~5LPM
Input Current	300mA	According to LED Selection
Input Power	5~15W	Matched 1~5LPM
Waterproof Grade of Shell	IP65	-
Applicable Water Pressure	0.5~1Mpa	Optional
Wire Rod	200±10mm	Line Length can be Customized
Terminals	XH2.54,White	Terminals can be Customized
Lamp Bead Life	10000~25000 Hours	According to LED Selection
Dielectric Strength	DC500 V, 1min@10mA, Leakage Current
Size	φ49*90mm
Net weight	91±5g
Applicable Water Temperature	0℃~40℃	-
Storage Temperature	-40℃~85℃	-

Warning Instructions For Use

1. To avoid energy decay, keep the front glass clean.

2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.

3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.

4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not

recommended that the glue of the outlet hole of the module directly contact the drinking water.

5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged

6. Human safety

Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.

If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be

used to protect the body. Attach the following warning labels to products / systems

Company Features

· With so many years, Zhuhai Tianhui Electronic Co., Ltd. has been specializing in the R&D, design, and manufacture of 365 405nm. We have become a famous manufacturer in the industry.

· Tianhui always keeps innovative to update the 365 405nm.

· Zhuhai Tianhui Electronic Co., Ltd. firmly sticks to customer's needs to improve 365 405nm. Inquire!

Application of the Product

The 365 405nm produced by our company is widely used.

With a focus on customers' potential needs, Tianhui provides customers with one-stop solutions.

Enterprise Advantages

Our employees are mainly composed of young people with outstanding professional skills and experienced experts. They have the good team spirit and ensure the efficient operation and our rapid development.

Our company has always adhered to the service concept of 'based on integrity and treat people sincerely', and we provide considerate one-stop service for consumers to solve problems promptly.

We take 'integrity-based, developing and innovating' as our business philosophy, and 'dedication, passion and pragmatism' as our enterprise spirit. Thus, we wholeheartedly provide high-quality products and services for consumers, and strive to build our company into a well-known company with market competitiveness, brand influence and industry driving force.

Established in our company has accumulated rich industry experience after exploring for years.

At present, our company has established a sound marketing service system in China and the service range covers all levels of markets across the country.
