Description
Tianhui- one of the leading UV LED chip manufacturers and suppliers provides ODM/OEM UV led chip service for over 22+ years.
Company Advantages
· With the help of our skilled engineers, Tianhui ultraviolet sterilization systems is designed with a variety of innovative and practical designs.
· The simple yet stylish modern design of this product makes it extremely popular among the young. The product is widely used as an essential decor to the buildings owing to its enough brightness and soft light output.
· The product has accumulated numerous praises from customers in the industry.
Description

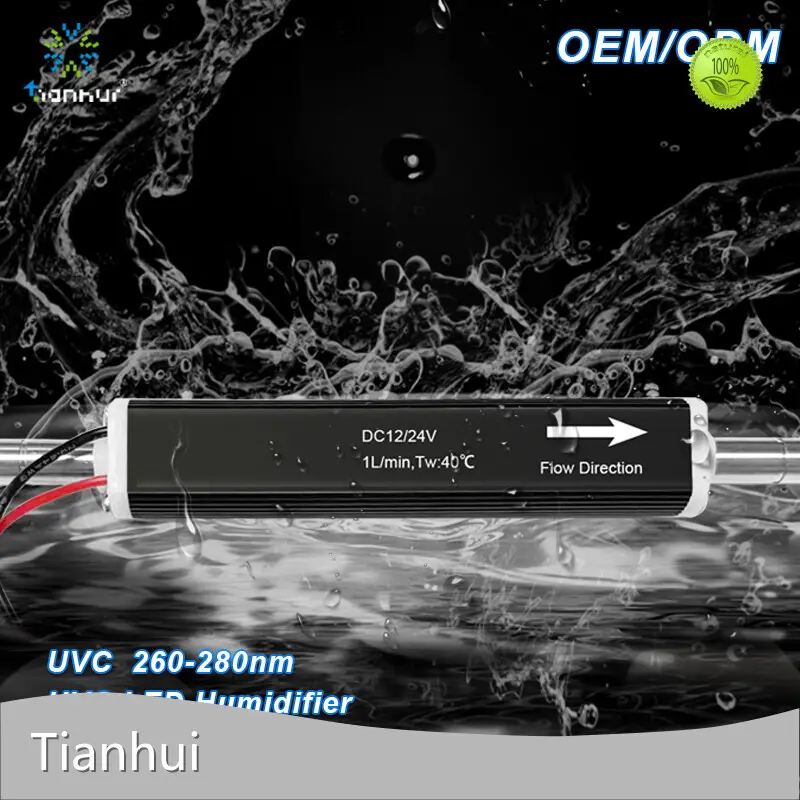

TH-UVC-CM01M is a UVC LED over-current water killing device
Bacterial module. Small size, environmental protection and safety of selected materials drinking water and food contact requirements.
The wavelength range of the UVC LED used is 260- 280nm, with excellent and efficient sterilization effect.
Inside UVC high reflectivity cavity can effectively improve the utilization of UV light. So as to significantly improve the bactericidal effec
Application
Drinking machine | Ice machine | Air humidifier | Air purifier |
Aromatherapy machine | Pet water dispenser | Dishwasher |
Parameters
Item | Specifications | Remark |
Model | TH-UVC-CM01M | - |
Opening Hole size | - | - |
Rated voltage | DC 12V or DC 24V | - |
UVC radiation flux | 35~45mW | 1LPM ( Can fix 2LPM ) |
UVC Wavelength | 260-280nm | - |
Input current | 125mA@12V | 63mA@24V |
Input power | 1.5W | - |
Waterproof grade | IP60 | - |
Wire rod | UL1007 24AWG | Customizable |
Terminals | XH2.54, White | Terminals can be customized |
Lamp bead life | 10,000 Hours | According LED |
Dielectric Strength | DC500 V,1min@10mA, Input current | |
Size | Φ16.3x80.4 (mm) | |
Net weight | 28g±3g | |
Applicable water temperature | 4~40℃ | - |
Storage temperature | -40℃-85℃ | - |
Warning Instructions For Use
1. To avoid energy decay, keep the front glass clean.
2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.
3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.
4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not
recommended that the glue of the outlet hole of the module directly contact the drinking water.
5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged
6. Human safety
Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.
If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be
used to protect the body. Attach the following warning labels to products / systems
