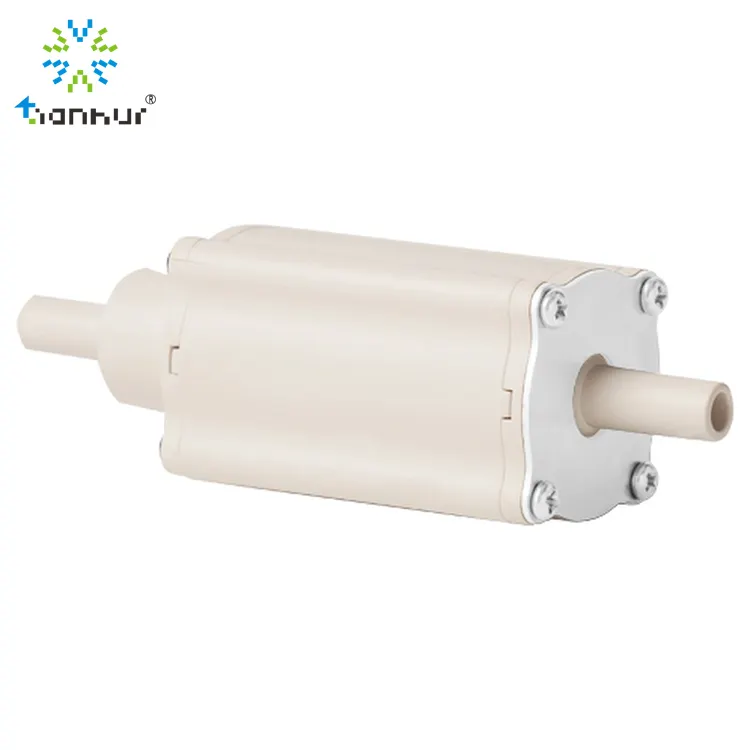

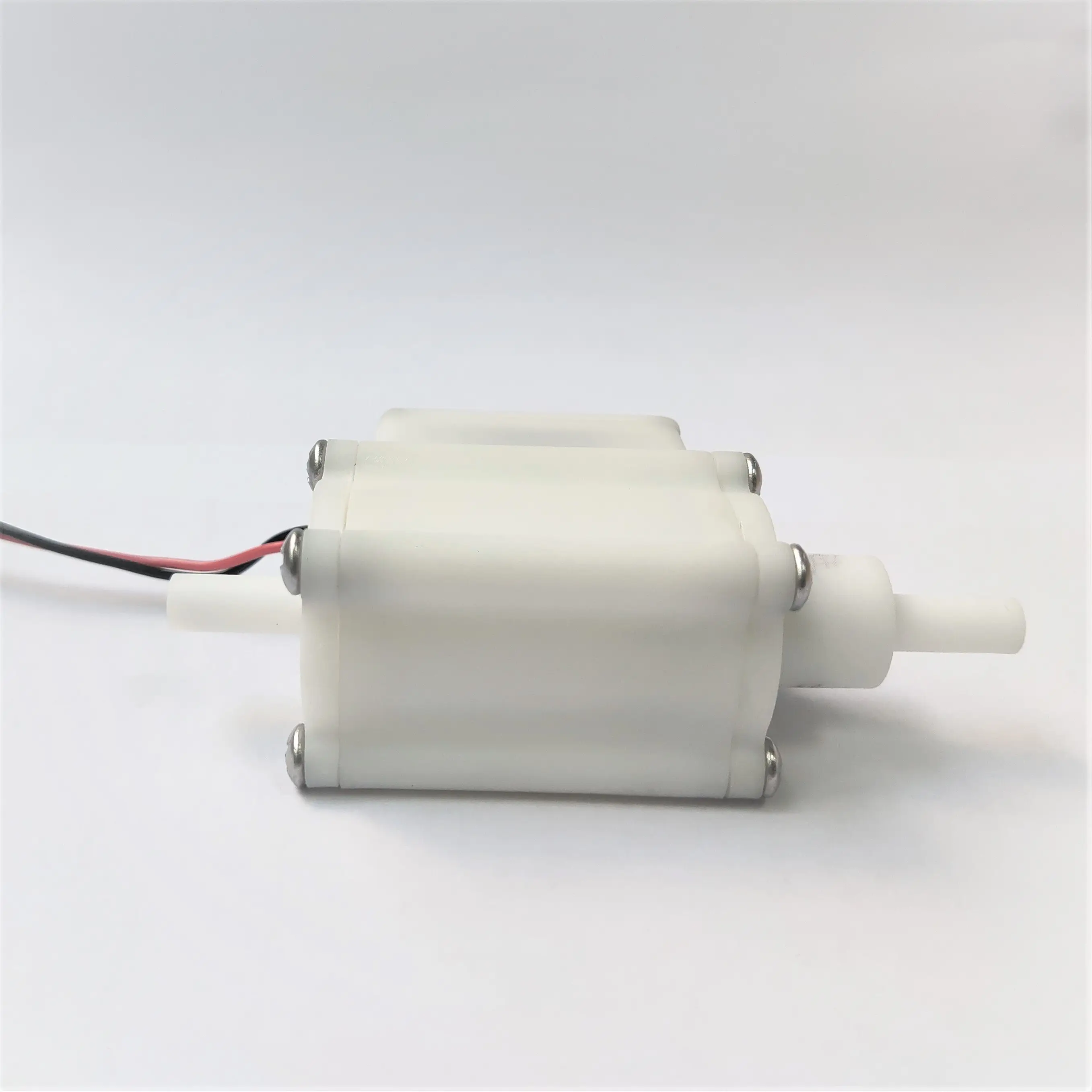

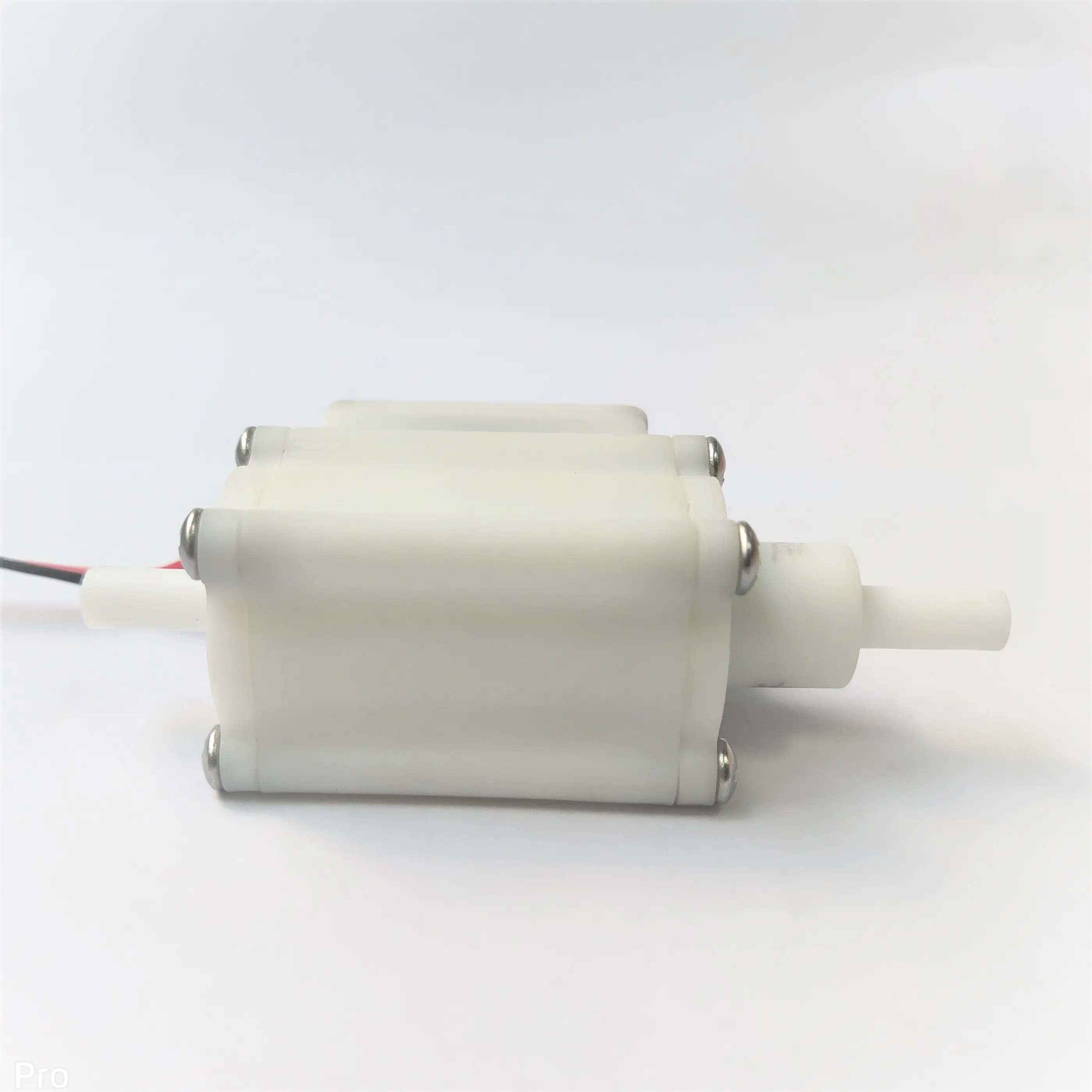

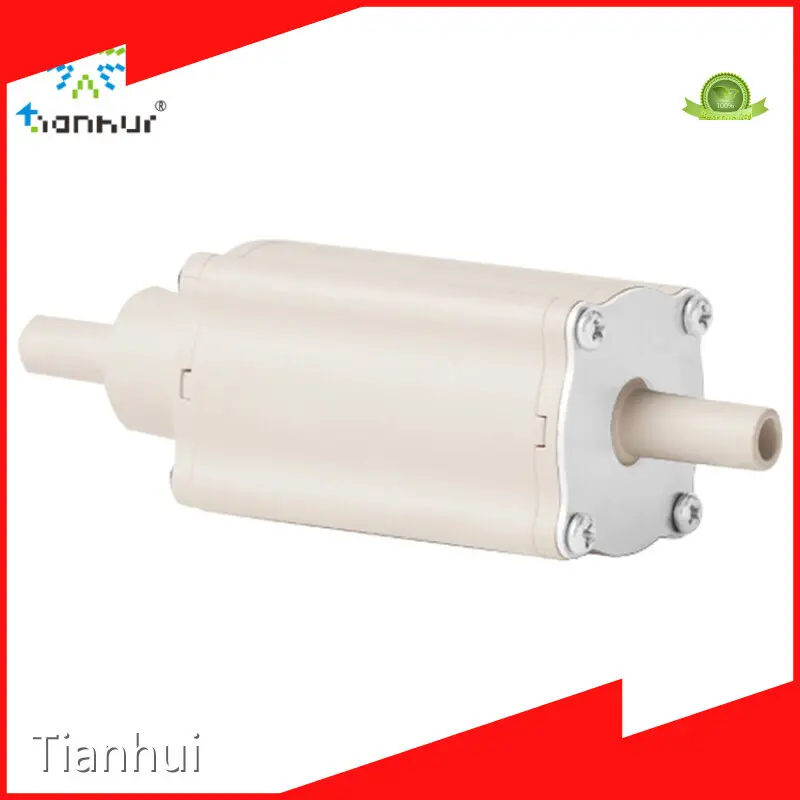

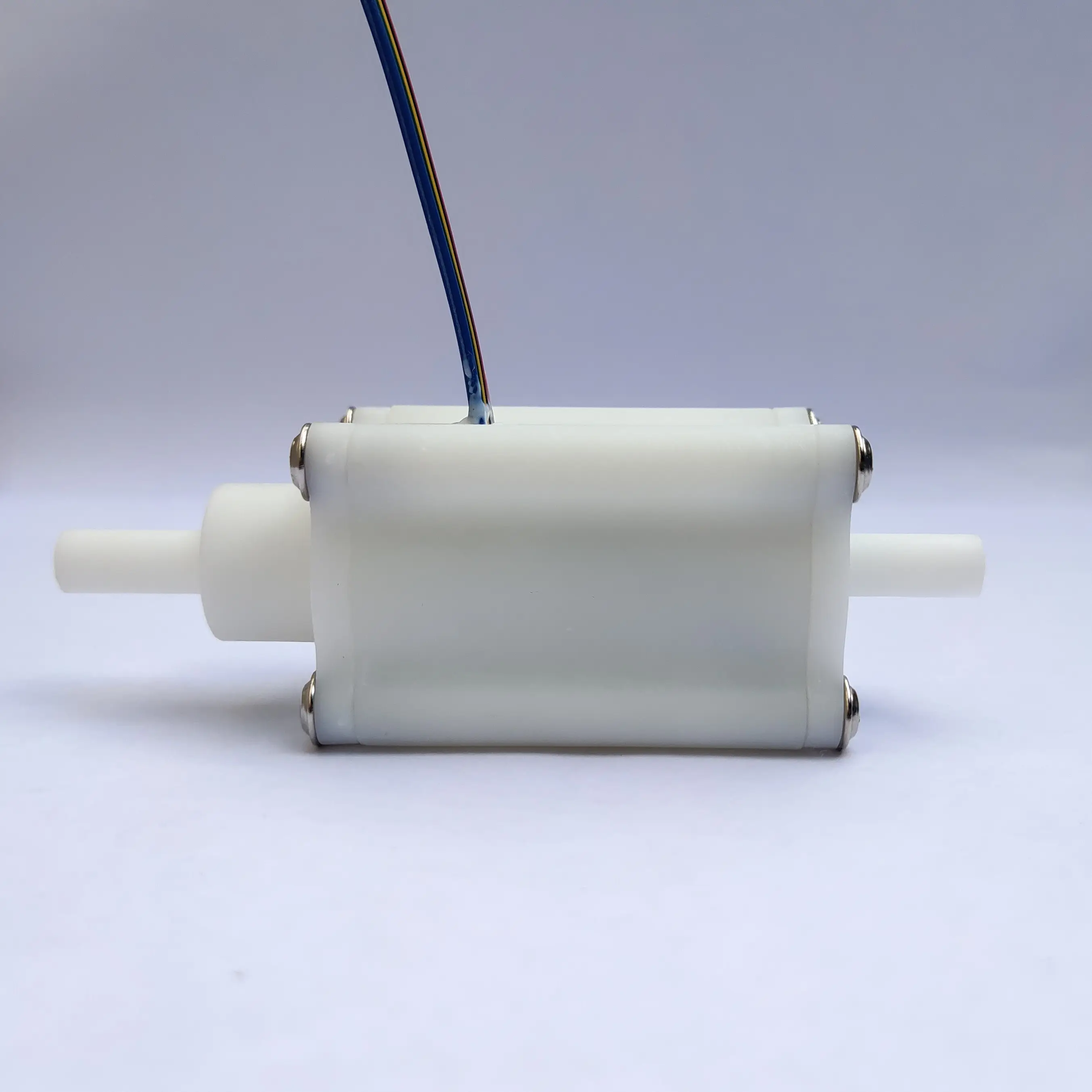

Uvc Module Pitcher Tianhui
Iinkcukacha zemveliso ye-uvc module pitcher
Inkcazelo yemveliso
I-Tianhui UVc module pitcher iyilwe kwaye iphuhliswe ngokuhambelana nemigangatho yeshishini kunye nemigangatho. Umgangatho wemveliso umelane novavanyo lwexesha. Imveliso inconywa kakhulu phakathi kwabathengi ngenxa yeenzuzo ezingentla kwaye isetyenziswa ngokubanzi kwimarike ngoku.
Inkcazelo
TH-UVC-PA04
Umthamo incinci,
izinto ezikhethiweyo zikhuselekile ngokusingqongileyo kwaye ziyahlangabezana neemfuno zamanzi okusela kunye noqhagamshelwano lokutya. I-
Imodyuli ixhomekeke ekuhambeni kwamanzi
chitha ubushushu, kwaye inokutshintsha kwayo ukuhamba kwamanzi ukuthintela ukudinwa ngenxa yokunqunyulwa kwamanzi. Imodyuli ilungele ukufakwa kwicandelo eliphakathi le
Indlela yamanzi.
izinto ezikhethiweyo zikhuselekile ngokusingqongileyo kwaye ziyahlangabezana neemfuno zamanzi okusela kunye noqhagamshelwano lokutya. I-
Imodyuli ixhomekeke ekuhambeni kwamanzi
chitha ubushushu, kwaye inokutshintsha kwayo ukuhamba kwamanzi ukuthintela ukudinwa ngenxa yokunqunyulwa kwamanzi. Imodyuli ilungele ukufakwa kwicandelo eliphakathi le
Indlela yamanzi.
Iimpawu
• Umgangatho weReferensi: QB/T 4827-
2015
• I-UVC LED (270-280 nm)
• Ubungakanani obuncinci, bulungele ukufakwa kwiindawo ezahlukeneyo
• Ubuhlobo bendalo
• Ukuthobela i-RoHS kunye nokuFikelela
2015
• I-UVC LED (270-280 nm)
•
Ukhuseleko lokutshisa okomileyo-Ukutshintsha kwamanzi okwakhelwe ngaphakathi ukukhusela ukutshisa okomileyo
Ngaphandle kwamanzi
Ngaphandle kwamanzi
• Ubungakanani obuncinci, bulungele ukufakwa kwiindawo ezahlukeneyo
• Ubuhlobo bendalo
• Ukuthobela i-RoHS kunye nokuFikelela
_Indawo:
• Indlu yangasese enobuchule
• Umenzi weqhwa
• Phantsi kwekhitshi lokucoca amanzi
• Ukufuma komoya
• Ukuhambisa amanzi kwizilwanyana ezilwayo
• Umatshini weti
Into
|
Iinkcazelo
|
IPhetshana
| |
Inani Lecandelo
|
TH-UVC-PA04
| ||
Isixhobo seInlet yamanzi
|
Φ6.5 (2/8 intshi ityhubhu)
|
Umbhobho oqhelekileyo okanye ngomgca we-Skidproof
| |
Isixhobo sokuphumwa kwamanzi
|
Φ6.5 (2/8 intshi ityhubhu)
|
Umbhobho oqhelekileyo okanye ngomgca we-Skidproof
| |
I-Voltage elaliweyo
|
DC 12V
|
Zizikhethekileyo
| |
Amandla amakhadi e-UVC
|
40-150mW
|
Ifanelekile i-0.6-3LPM
| |
Ubude be-UVC
|
270 ~ 280 nm
| ||
Umlinganiselo wokunyanzelisa
|
≥ 99.99% (Escherichia Coli)
|
UMax. 3LPM
| |
Ulwazi olungoku
|
100Ma
|
DC12V, Imodyuli ye-50mW
| |
Amandla okuNgenisa
|
1.2W
|
DC12V, Imodyuli ye-50mW
| |
Inqanaba lokungangenwa ngamanzi kweShell yangaphandle
|
IP67
| ||
Uxinzelelo Lwamanzi
|
≤0.4MPa
|
Ukukhetha
| |
Iintsimba
|
Yenzela
|
Ubude bunokulungisiwa
| |
Uxhulumaniso
|
Yenzela
|
Ungazenzelwa
| |
Ubomi be-LED
|
Iiyure ezili-10,000-25,000.
|
Ngokwemodeli ye-LED
| |
I-Insulation kunye ne-Voltage Resistance
|
DC500 V,1min@10mA, ukuvuza yangoku
| ||

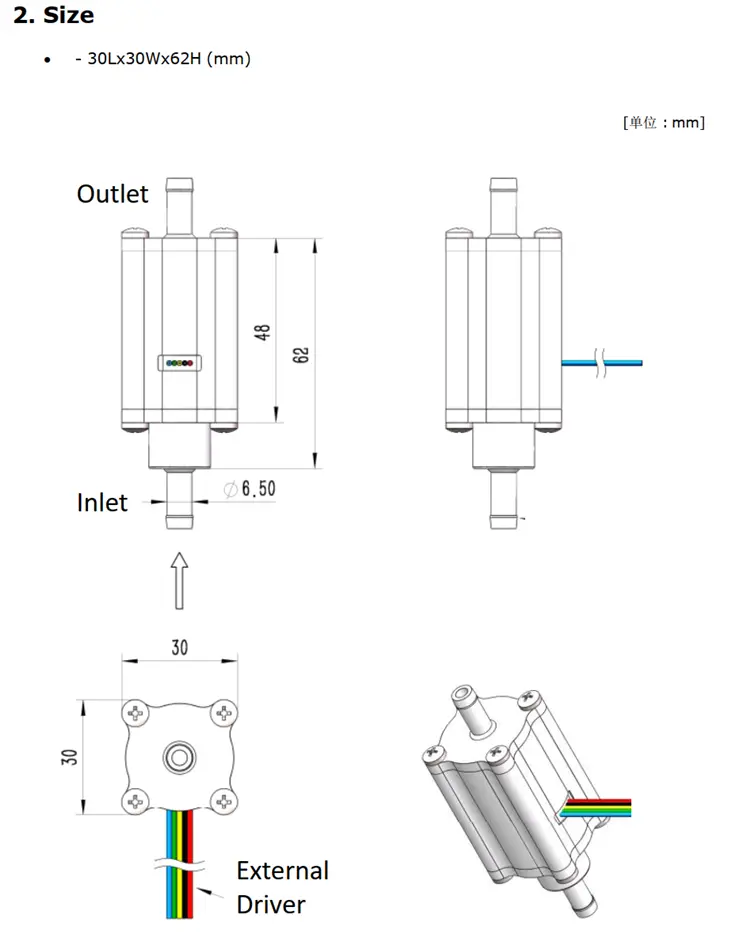

30Lx30Wx62H (mm)
| |||
Ubunzima benethi
|
74 ± 5g
| ||
Umlinganiselo wokuhamba kwamanzi
|
0.4L/mini
|
Imodyuli ayisebenzi ukuba umlinganiselo wokuhamba ungaphantsi ngo- 0.4L/MIN
| |
Ubushushu bamanzi obufanelekileyo
|
4℃-40℃
| ||
Iqondo lobushushu lovimba
|
-40℃-85℃
| ||
