The UV Curing Spectrum Guide: Matching 365/385/395/405nm to Your Application
How Does Wavelength Change Curing Behavior?
Two physical laws define everything in UV curing:
- Beer-Lambert attenuation: Irradiance decays exponentially with penetration depth. The rate of decay depends on the formulation's absorption coefficient at that wavelength — α(λ). Penetration depth is set by α(λ), not by wavelength itself; wavelength only enters the equation through the material's absorption spectrum. A longer wavelength penetrates deeper only when the formulation absorbs weakly at that wavelength — a common but not universal pattern.
- Photon energy: E = hc/λ. A shorter wavelength (365nm) carries more energy per photon than a longer wavelength (405nm), which matters for initiating reactions in heavily absorbing or pigmented systems.
The practical consequence: you trade penetration depth against photon energy at every wavelength step. There is no "best" wavelength — only the best match for your chemistry and geometry.

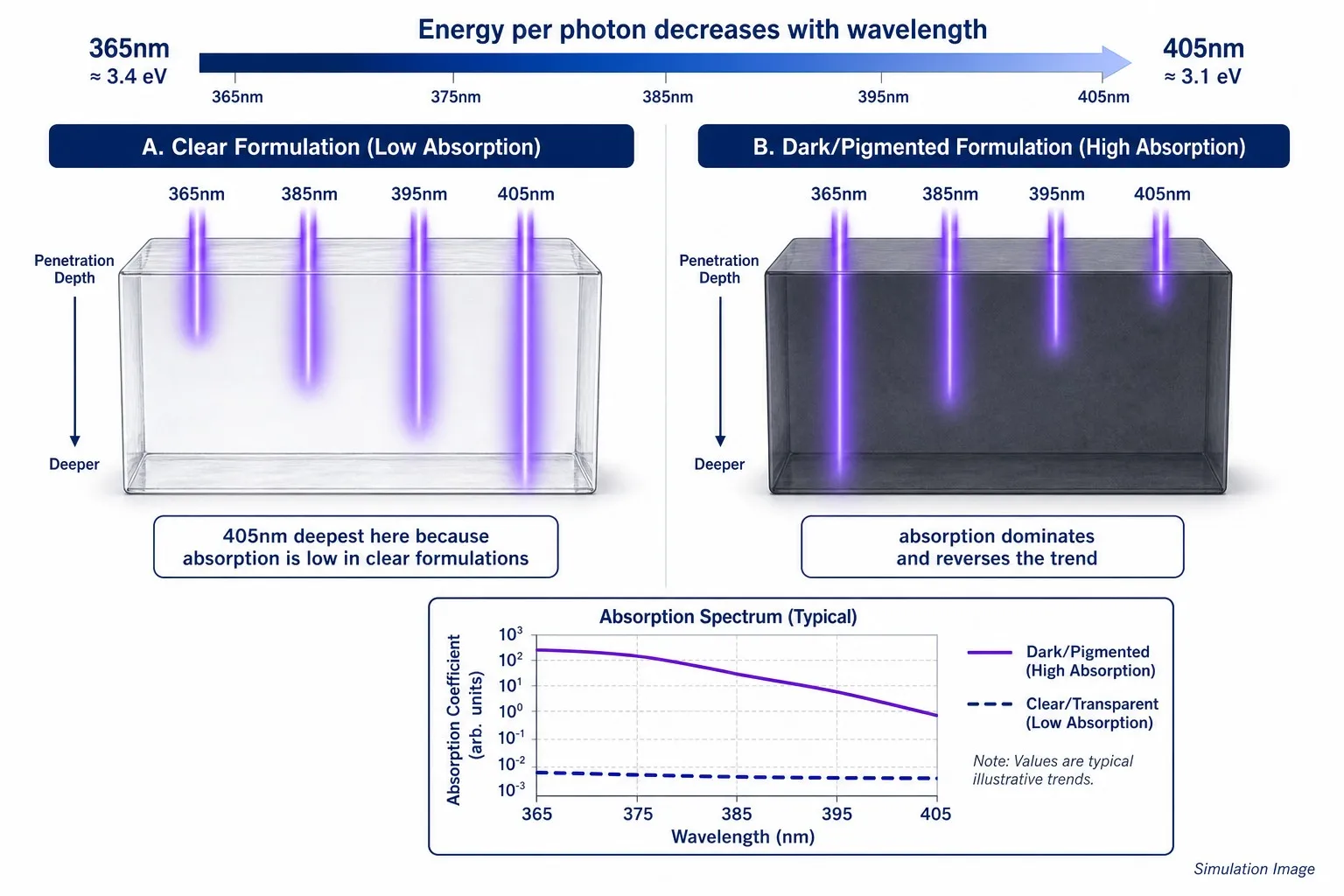

Figure 1: Penetration is governed by the formulation's absorption spectrum α(λ). Wavelength acts indirectly through α(λ); deeper penetration at 405nm is formulation-specific, not universal.
Which Wavelength Should I Choose? (365/385/395/405nm)
| Wavelength | Typical Use Case | Depth Character | Design Notes |
|---|---|---|---|
| 365nm | High-adhesion bonds, dark or thick-layer systems | Depends on initiator absorption at 365nm; photon-energy advantage in dark/thick systems | Best when the photoinitiator absorbs strongly at 365nm and you need full cure through thick sections |
| 385nm | General-purpose adhesives, electronics encapsulation | Balanced; depends on initiator absorption | The "default" band for structural adhesive and underfill processes; broad photoinitiator compatibility |
| 395nm | Surface cure, dark-color systems | Shallow in dark systems; efficient surface absorption | Preferred for high-surface-energy coatings and fast skin-cure where through-cure is less critical |
| 405nm | SLA/DLP 3D printing, transparent systems | Typically deepest in clear formulations (low α at 405nm); not suitable for dark systems | Near the absorption peak of common free-radical photoinitiators used in photopolymer resin printing; low absorption in clear formulations |
Which wavelength for deep curing?
If your process requires curing through a thick, dark, or highly pigmented layer — structural adhesives, potting compounds, or heavily filled coatings — start with 365nm. Not because 365nm penetrates deeper, but because its higher photon energy (≈3.4 eV) gives it the best chance of driving full conversion in highly absorbing systems. Verify with a cure-depth test on your actual formulation: absorption coefficients vary widely between resin systems.
Why 405nm for 3D printing?
SLA and DLP printers cure resin layer by layer at the build surface, not through bulk material. The requirement is precise lateral resolution and a controlled cure depth per layer, not deep penetration. 405nm aligns well with the peak absorption of many free-radical photoinitiators used in photopolymer resins, and its low absorption in transparent formulations allows clean, predictable layer control.
When is 395nm the right call?
When the goal is a fast, tack-free surface — for example, gelling the surface of a dark coating so it can be handled — 395nm delivers efficient surface absorption in formulations that are transparent to deeper wavelengths. It is a production-speed choice, not a depth-cure choice.
Why Switch from Mercury Arc Lamps to UV LED Curing?
| Attribute | Mercury Arc Lamp | UV LED Curing Diode |
|---|---|---|
| Warm-up time | Minutes (arc stabilization) | Instant-on, microseconds to full output |
| Heat load | High IR emission (heats the substrate) | Cold curing — minimal IR, protects heat-sensitive parts |
| Ozone | Generates ozone from the 185nm mercury emission line in its broadband spectrum | No ozone generation in the 365–405nm band |
| Energy consumption | Continuous high draw | Lower; power scales with demand |
| Service life | 1,000–2,000 hours typical (arc tube) | 50,000 hours of continuous operation under rated conditions |
| Spectral stability | Drifts with tube aging | Locked by diode binning; consistent output |
The cold-curing nature of LED is often the decisive factor: curing heat-sensitive electronics, film substrates, or medical devices without thermal damage is only practical with a low-IR source.

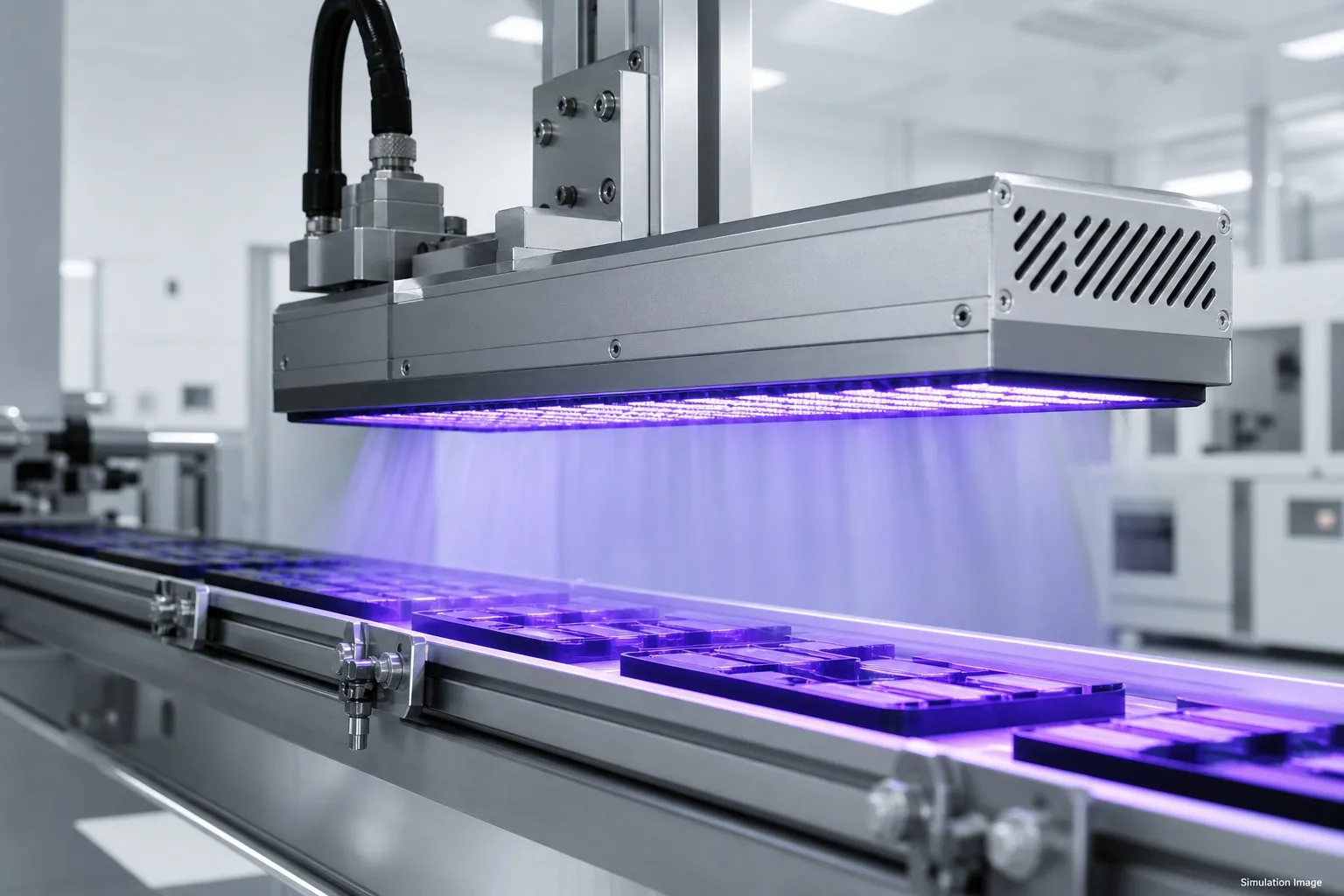

Figure 2: Linear UV LED curing module integrated above an inline production conveyor.
Frequently Asked Questions
Q1: What is the difference between UV curing and UV disinfection wavelengths?
UV curing uses UVA diodes at 365/385/395/405nm to initiate photopolymerization. UV disinfection uses UVC at 265/275nm to damage microbial DNA. They are separate applications with separate product lines.
Q2: Does a longer wavelength always mean deeper cure?
Penetration depth is governed by the formulation's absorption coefficient at that wavelength (Beer-Lambert), not by wavelength alone. In a clear formulation that absorbs weakly at 405nm, 405nm typically penetrates deeper than 365nm; in a dark or pigmented system, absorption dominates and can reverse the trend entirely. (For reference: ≈3.4 eV per photon at 365nm versus ≈3.1 eV at 405nm.)
Q3: Which wavelength is best for general-purpose adhesive curing?
385nm is the common "default" for structural adhesives and electronics encapsulation because it offers a balanced combination of depth and photon energy with broad photoinitiator compatibility. Final selection must be validated against your specific adhesive chemistry.
Q4: Is 405nm suitable for curing dark or pigmented systems?
Generally not ideal. Dark pigments absorb strongly at 405nm, starving the depth of energy. For dark or heavily filled systems, 365nm is usually the better starting point.
Q5: How long do UV LED curing diodes last?
Tianhui curing modules are rated for 50,000 hours of continuous operation under rated operating conditions. Actual life depends on drive current, thermal management, and duty cycle — validate against your operating profile.
